Basic Text (Text)

Text inherits from Sprite and is the fundamental component for displaying static text. Here we introduce the properties specific to the Text component.

1. Using Text in LayaAir IDE

1.1 Creating Text

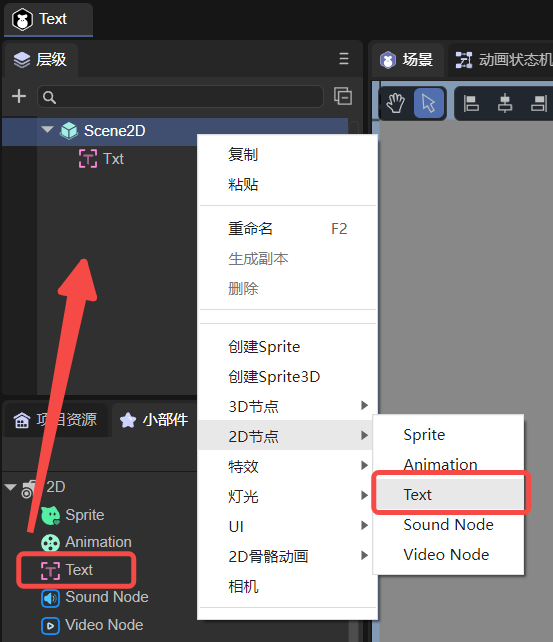

As shown in Figure 1-1, you can right-click in the Hierarchy window to create it, or drag and drop it from the Widgets window.

(Figure 1-1)

1.2 Property Introduction

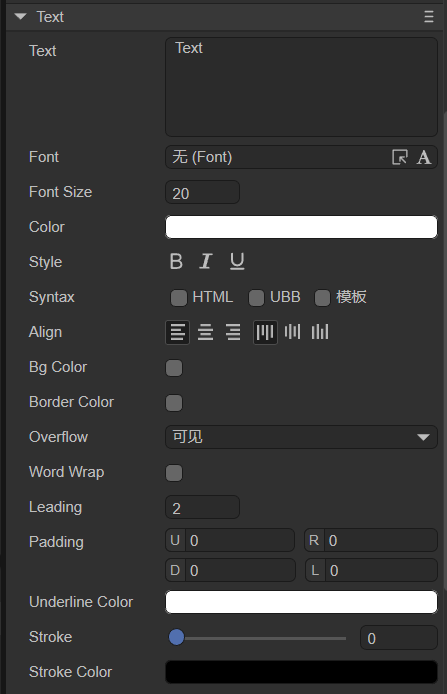

After adding a Text component to the scene editing view, its exclusive properties appear in the property panel, as shown in Figure 1-2:

(Figure 1-2)

Below is a description of each property:

Most of these properties are straightforward; developers can adjust the parameters and observe the results in the IDE. The following section details the “Syntax” property.

1.3 Syntax Property

1.3.1 HTML and UBB

When the HTML checkbox is selected, partial HTML syntax is supported. When UBB is selected, UBB syntax is supported. If both are checked, both syntaxes are available.

Supported UBB syntax:

UBB supports nested tags, such as [color=#FF0000][size=60]Red text size 60[/size][/color].

Supported HTML syntax:

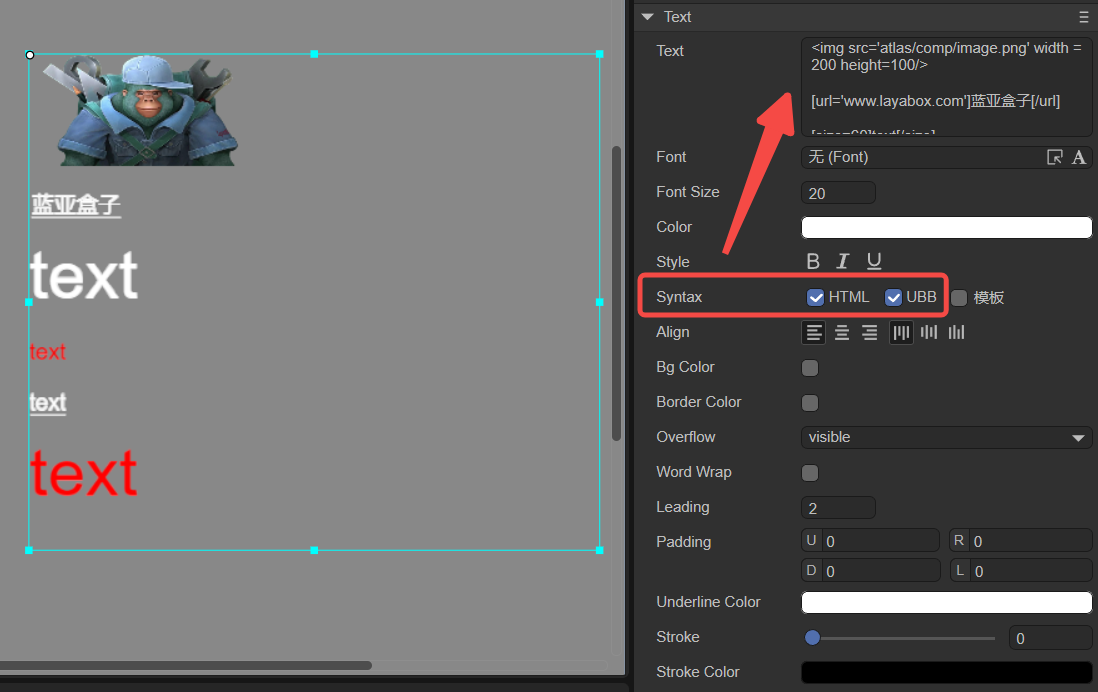

As shown in Figure 1-3, when both HTML and UBB are checked, you can input syntax expressions in the Text field:

(Figure 1-3)

Example Text content:

<img src='atlas/comp/image.png' width = 200 height=100/>
[url='www.layabox.com']Layabox[/url]
[size=60]text[/size]
[color=#FF0000]text[/color]
[u]text[/u]
[color=#FF0000][size=60]text[/size][/color]

These six lines correspond to the six effects in Figure 1-3: image, link, font size 60, red text, underline, and nested styles. Line breaks are added only for readability.

1.3.2 Template

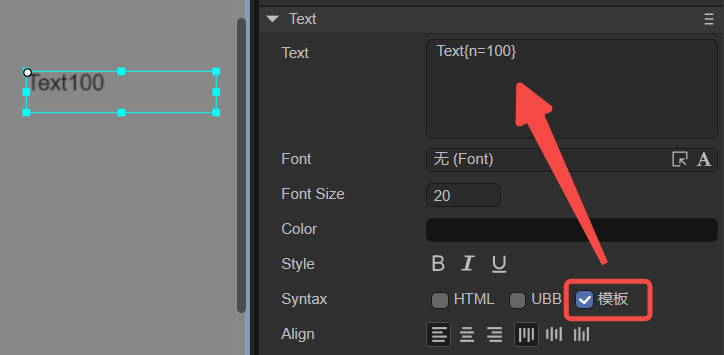

You can also enable the Template option in the “syntax” property to use variables in strings. For example, input Text{n=100}, as shown in Figure 1-4:

(Figure 1-4)

The variable n can also be a string, e.g., Text{n=Hello} results in Figure 1-5. The variable name can be customized.

(Figure 1-5)

You can dynamically change variable n using the setVar method in code:

const { regClass, property } = Laya;

@regClass()
export class NewScript extends Laya.Script {
    @property({ type: Laya.Text })
    txt: Laya.Text;

    onAwake(): void {
        this.txt.text = "Page {n=1}";
    }

    onStart(): void {
        let page: number = 1;
        Laya.timer.frameLoop(10, this, () => {
            page += 1;
            this.txt.setVar("n", page);
        });
    }
}

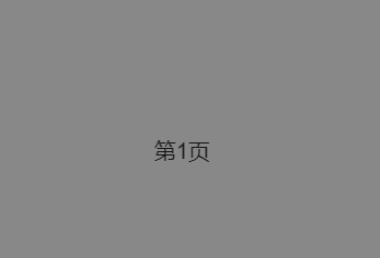

Animated result as shown in Figure 1-6:

(Figure 1-6)

Note: The variable n can also be loaded from a .json file and assigned using setVar.

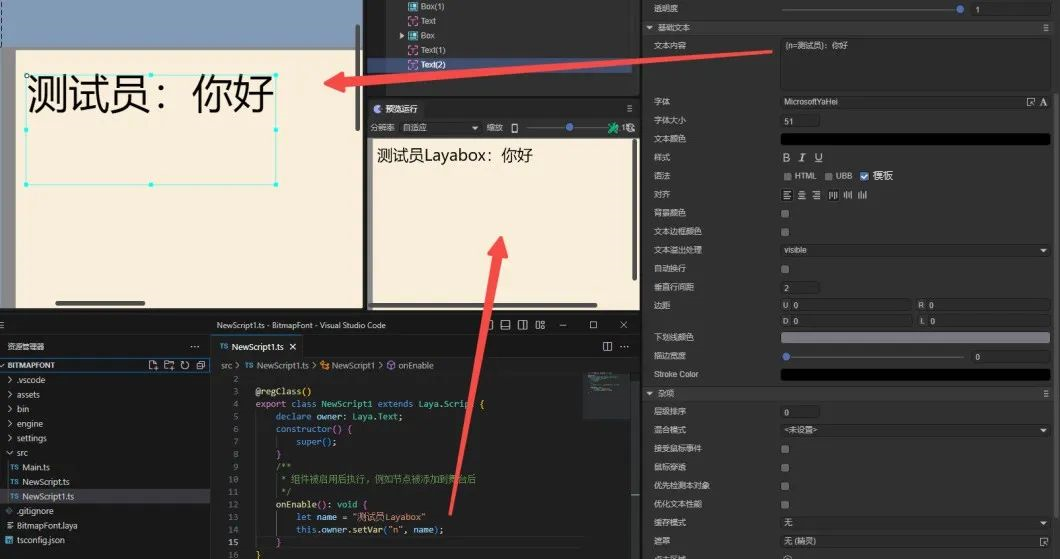

A common game use case is dynamic dialogue, where only the player’s name changes, as shown in Figure 1-7. With templates, only the variable needs updating instead of the entire text.

(Figure 1-7)

1.4 Script Control of Text

Add a custom script component in the Scene2D property panel and assign a Text node to it. Example code:

const { regClass, property } = Laya;

@regClass()
export class TextControl extends Laya.Script {
    @property({ type: Laya.Text })
    public txt: Laya.Text;

    onAwake(): void {
        this.txt.pos(Laya.stage.width >> 1, Laya.stage.height >> 1);
        this.txt.size(500, 30);
        this.txt.pivot(this.txt.width/2, this.txt.height/2);
        this.txt.text = "Hello everyone, welcome to LayaAir IDE. This is the Text content for testing.";
        this.txt.font = "SimSun";
        this.txt.fontSize = 50;
        this.txt.color = "#ff0000";
        this.txt.bold = true;
        this.txt.italic = true;
        this.txt.underline = true;
        this.txt.underlineColor = "#ff0000";
        this.txt.stroke = 5;
        this.txt.strokeColor = "#000000";
        this.txt.wordWrap = true;
        this.txt.leading = 20;
        this.txt.align = "center";
        this.txt.valign = "top";
        this.txt.overflow = "visible";
    }
}

Below is another example using the scroll overflow mode, allowing text to be scrolled via mouse drag:

const { regClass, property } = Laya;

let prevX = 0;
let prevY = 0;

@regClass()
export class UI_Text extends Laya.Script {

    @property({ type: Laya.Text })
    txt: Laya.Text;

    onAwake(): void {
        this.txt.text =
            "Layabox is an HTML5 engine provider and game publisher, offering HTML5 solutions for AS/JS/TS developers!\n".repeat(6);
        this.txt.fontSize = 35;
        this.txt.size(400,150);
        this.txt.borderColor = "#fa1515";
        this.txt.overflow = "scroll";
        this.txt.on(Laya.Event.MOUSE_DOWN, this, this.startScrollText);
    }

    startScrollText() {
        prevX = this.txt.mouseX;
        prevY = this.txt.mouseY;
        Laya.stage.on(Laya.Event.MOUSE_MOVE, this, this.scrollText);
        Laya.stage.on(Laya.Event.MOUSE_UP, this, this.finishScrollText);
    }

    finishScrollText() {
        Laya.stage.off(Laya.Event.MOUSE_MOVE, this, this.scrollText);
        Laya.stage.off(Laya.Event.MOUSE_UP, this, this.finishScrollText);
    }

    scrollText() {
        let nowX = this.txt.mouseX;
        let nowY = this.txt.mouseY;
        this.txt.scrollX += prevX - nowX;
        this.txt.scrollY += prevY - nowY;
        prevX = nowX;
        prevY = nowY;
    }
}

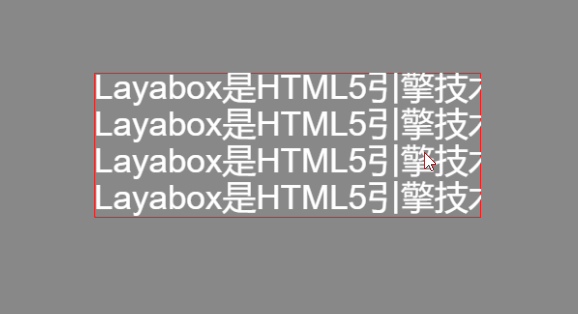

Effect shown below:

(Figure 1-8)

This demonstrates that scroll mode differs from hidden mode — the text beyond the box isn’t clipped.

2. Creating Text via Code

Sometimes, you may want to create a Text node dynamically rather than at scene load. Example:

const { regClass } = Laya;

@regClass()
export class NewScript extends Laya.Script {

    onAwake(): void {
        let txt = new Laya.Text();
        Laya.stage.addChild(txt);
        txt.pos(Laya.stage.width >> 1, Laya.stage.height >> 1);
        txt.size(500, 30);
        txt.pivot(txt.width/2, txt.height/2);
        txt.text = "Hello, welcome to LayaAir IDE. This Text was created via code.";
        txt.wordWrap = true;
    }
}
