Project Settings Explained

Author: Charley, Meng Xingyu

1. Run Configuration

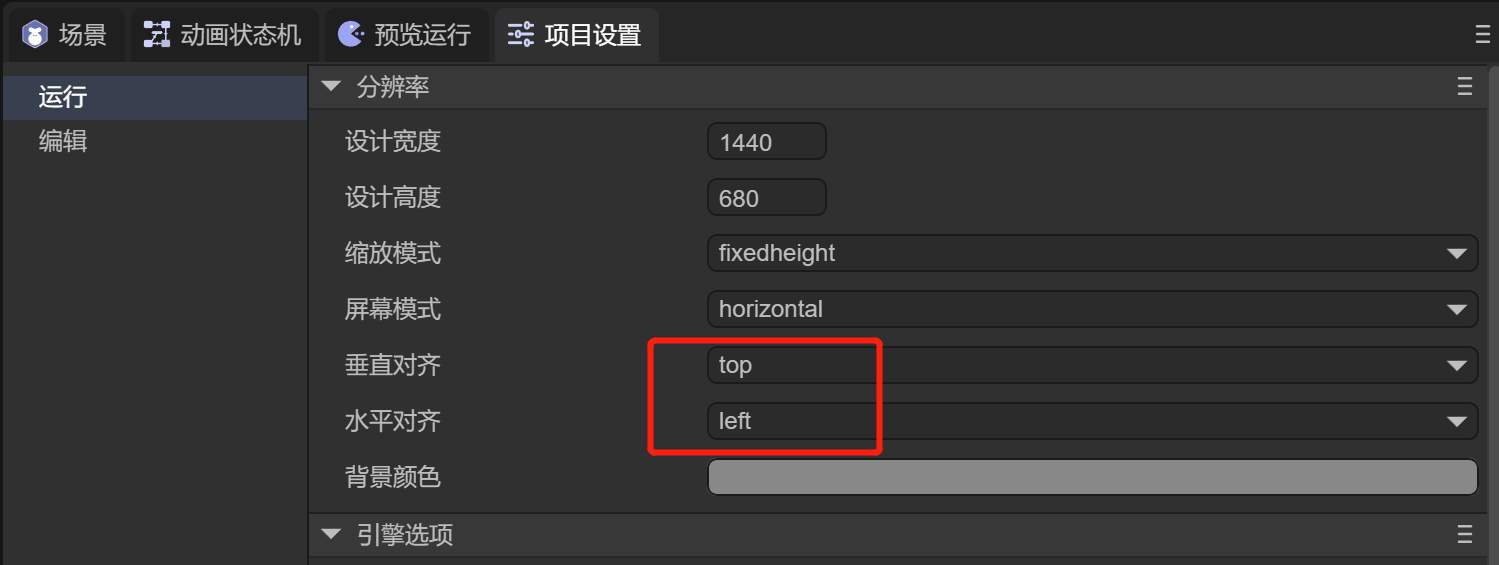

1.1 Resolution Settings

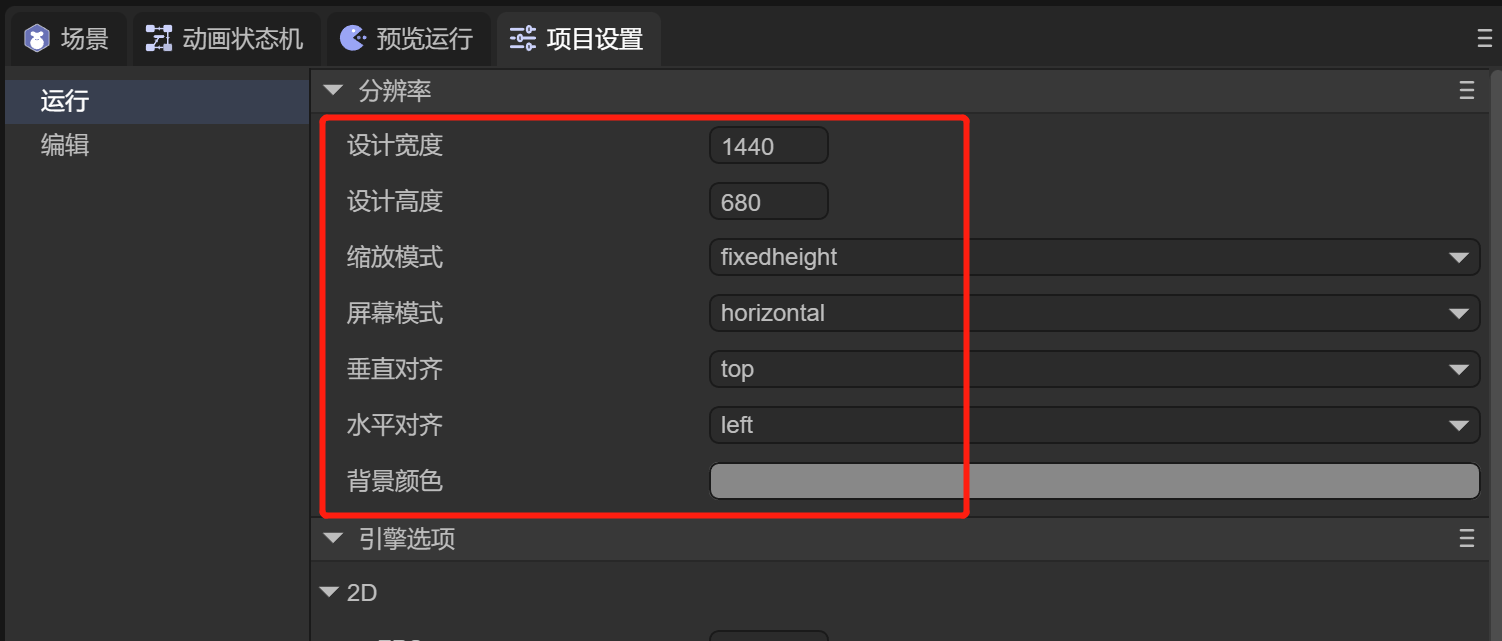

Resolution settings affect the preview effect inside the IDE, as well as the canvas width and height, scaling mode, alignment, and background color at runtime. Available properties are shown in Figure 1-1:

(Figure 1-1)

1.1.1 Screen Width and Height Adaptation

Three settings affect the display size of the product: Design Width, Design Height, and Scale Mode.

The Design Width and Height represent the dimensions set and visible in the IDE.

These values determine the background size of the UI scene and the preview mode within the IDE.

However, in actual runtime environments (e.g., different mobile devices), the screen ratios vary, so the designed resolution cannot perfectly match all devices.

Therefore, the engine provides multiple scale adaptation modes to adjust the canvas according to different screens.

Scale adaptation involves concepts such as the canvas, stage, and adaptation algorithms — these are explained in detail in the Screen Adaptation document.

1.1.2 Orientation (Landscape/Portrait)

Sometimes, you may want to force a specific screen orientation. This can be set via the Screen Mode property in the IDE.

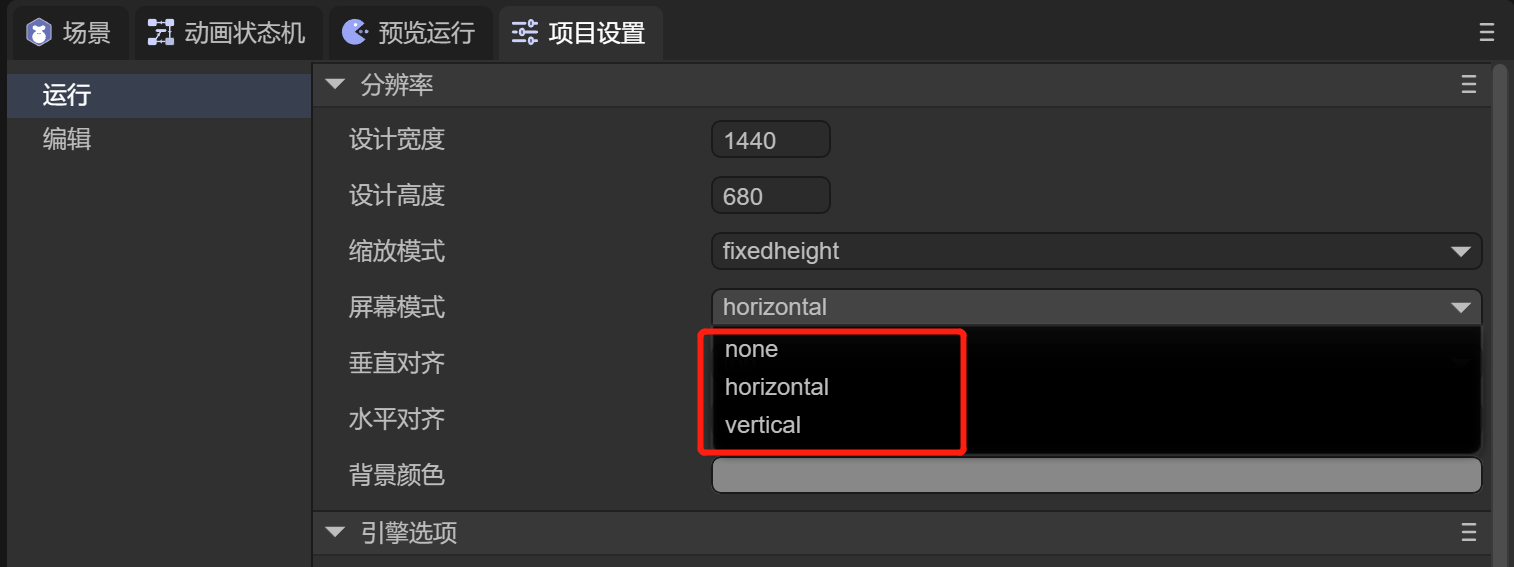

There are three orientation modes, as shown in Figure 1-2.

(Figure 1-2)

1. None

When set to none, the game’s orientation will not change when the device is rotated.

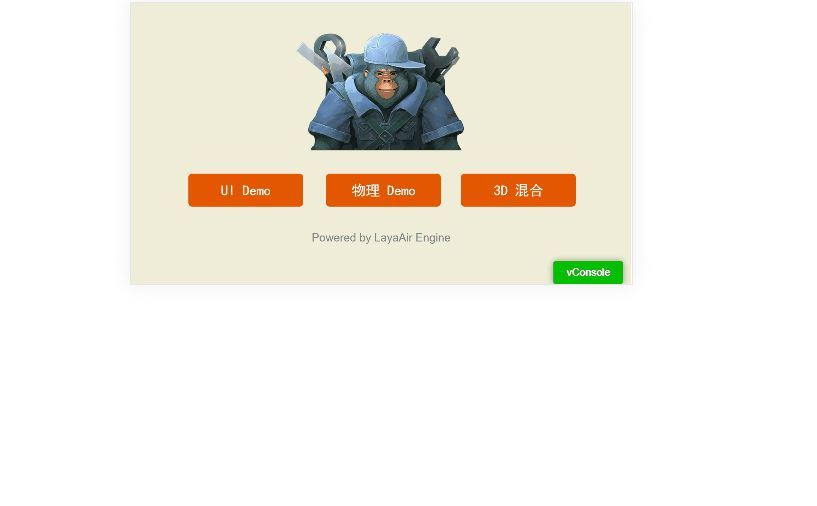

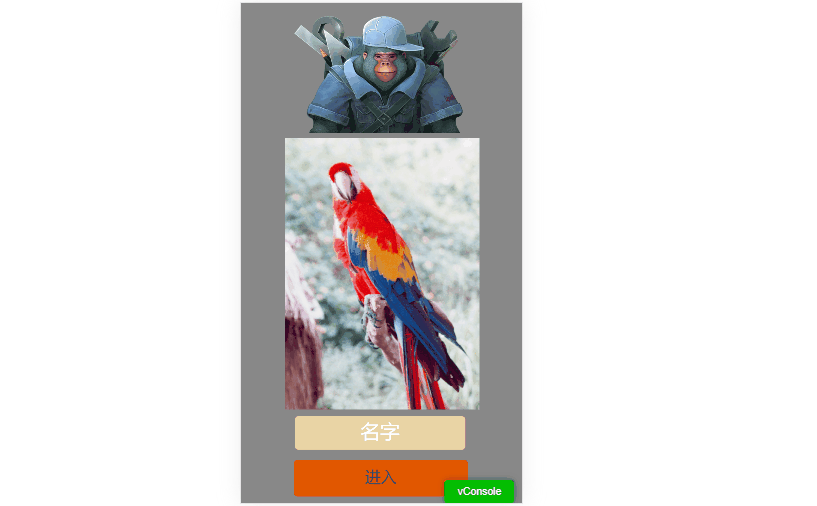

Example shown in Animation 1-3:

(Animation 1-3)

As shown, when the screen rotates, the designed portrait interface may not display correctly in landscape and vice versa.

With proper layout strategies, you can make the UI adaptive to both orientations (Animation 1-4).

(Animation 1-4)

However, the best practice is to keep portrait mode aligned with the device’s portrait orientation and landscape mode with the device’s landscape orientation.

2. Always Landscape (horizontal)

If your game is designed for landscape, this is the optimal choice.

(Animation 1-5)

When screenMode is set to horizontal, the game’s horizontal axis always stays perpendicular to the shorter screen edge, ensuring proper display orientation.

3. Always Portrait (vertical)

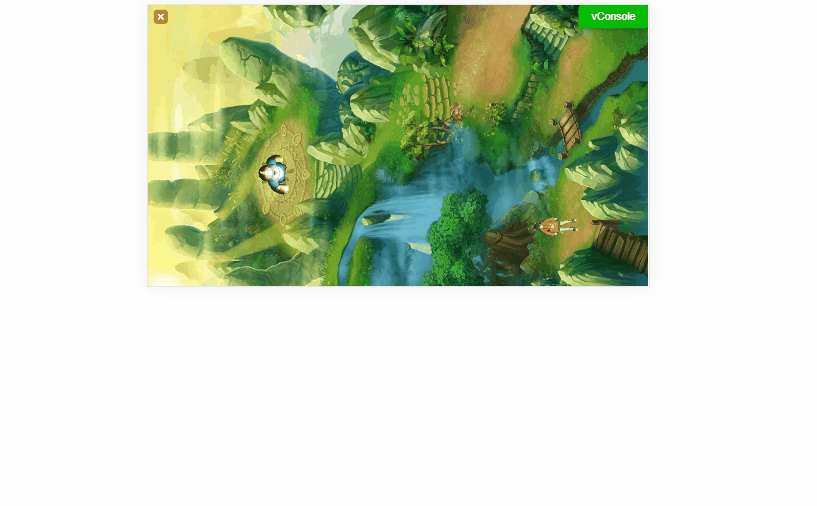

For portrait games, this setting is ideal.

(Animation 1-6)

When screenMode is set to vertical, the game’s horizontal axis always stays perpendicular to the longer screen edge.

Even if users rotate the device, the display remains vertical.

[!Tip] In browsers, the engine’s auto-rotation only affects the canvas, not the browser itself. If the phone is locked, the canvas may rotate but the browser remains fixed, which may cause input issues (e.g., rotated keyboard).

Mini-game platforms handle orientation at the system level, so this issue does not occur there.

1.1.3 Canvas Background Color

This property defines the canvas background color. The default value is #888888, as shown in Figure 1-7.

(Figure 1-7)

1.2 Engine Initialization Settings

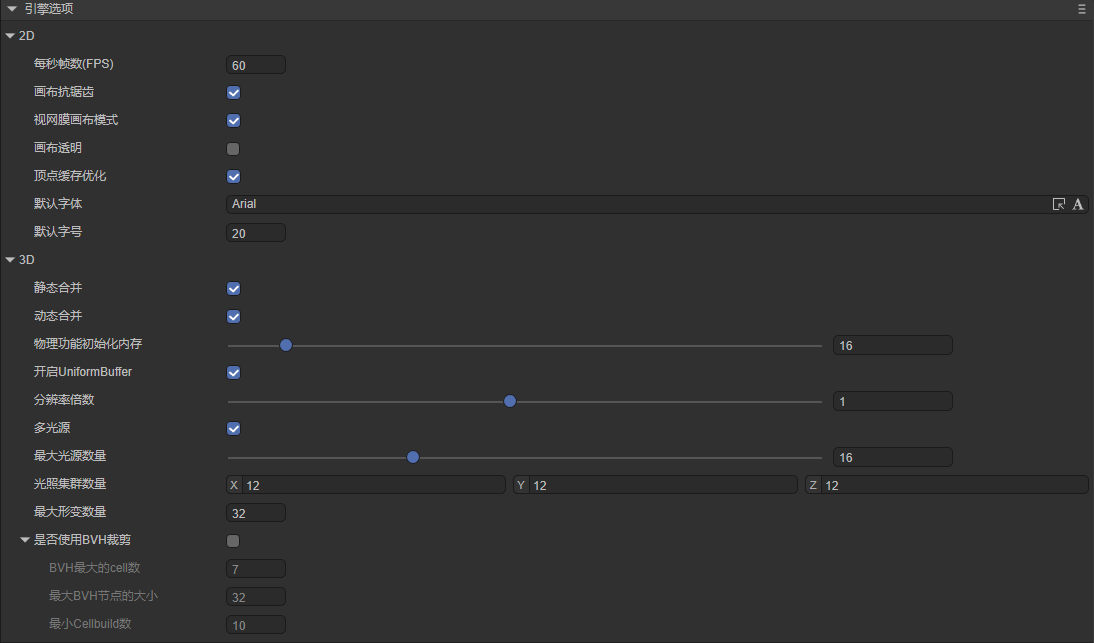

Some engine options must be configured at initialization, as shown in Figure 1-8.

(Figure 1-8)

2D Parameters:

3D Parameters:

1.3 Miscellaneous

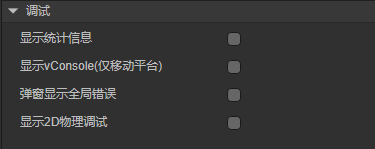

As shown in Figure 1-9, LayaAir IDE allows enabling debug modules:

(Figure 1-9)

1.3.1 Show Statistics

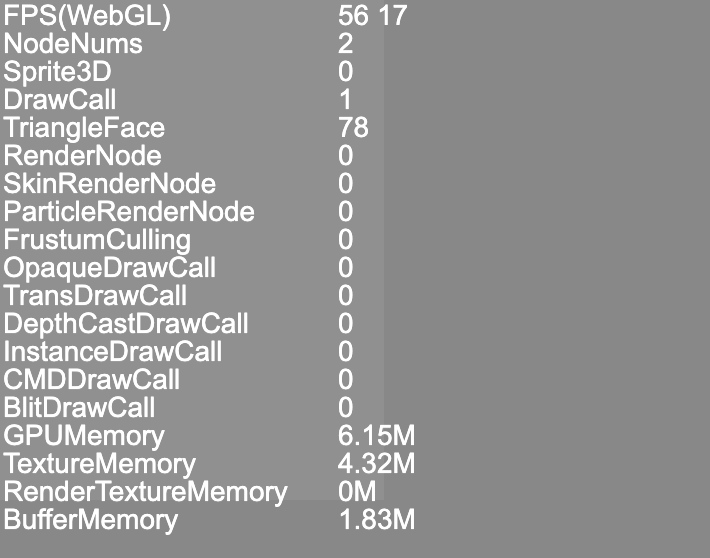

Displays frame rate, memory usage, and node counts (Figure 1-10).

(Figure 1-10)

For detailed metric explanations, see Performance Statistics and Optimization.

1.3.2 Show VConsole

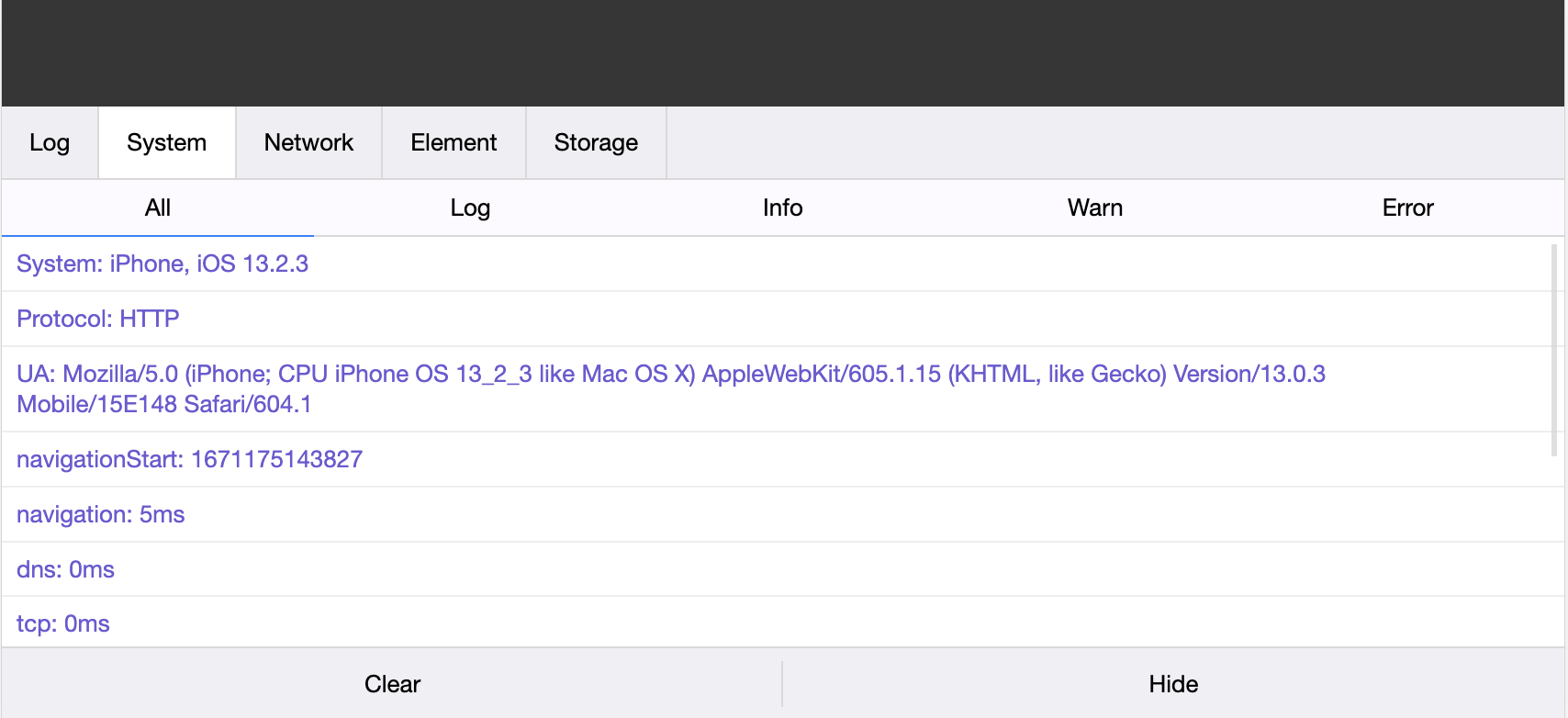

On mobile devices, VConsole provides lightweight debugging tools (Figure 1-11).

(Figure 1-11)

1.3.3 Show Global Error Popup

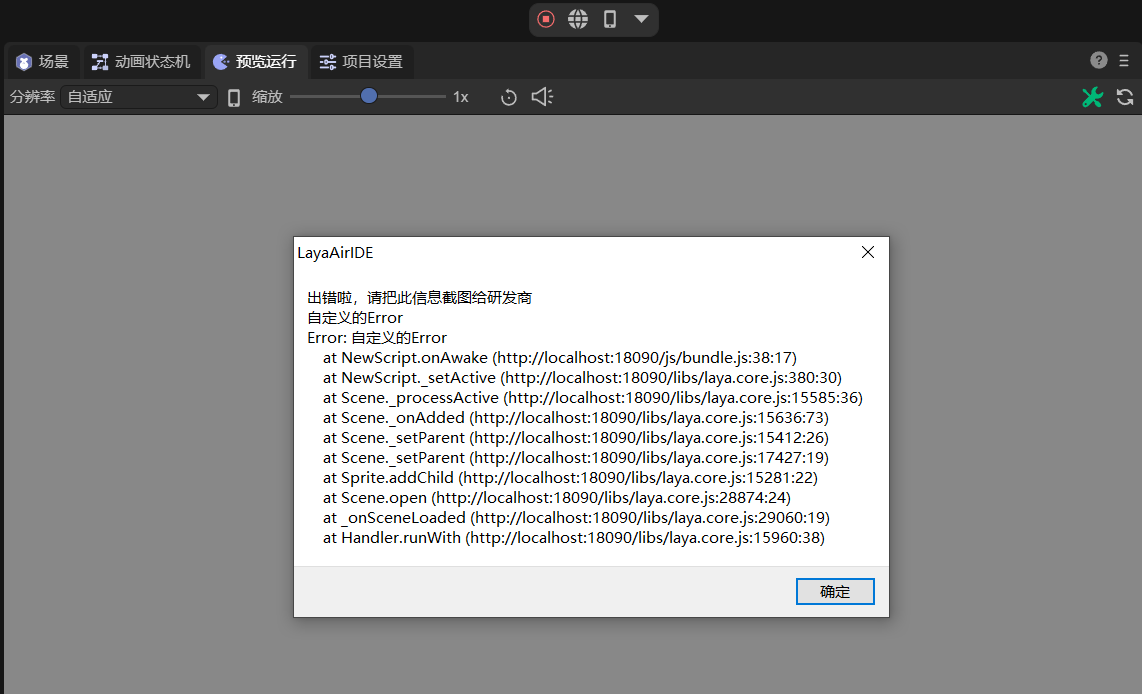

When window.onerror catches a global error, enabling this option will display a popup with stack details.

Example:

let err = new Error("Custom Error");
Laya.Browser.window.onerror(err.message, "", "", "", err);

(Figure 1-12)

2. Engine Modules

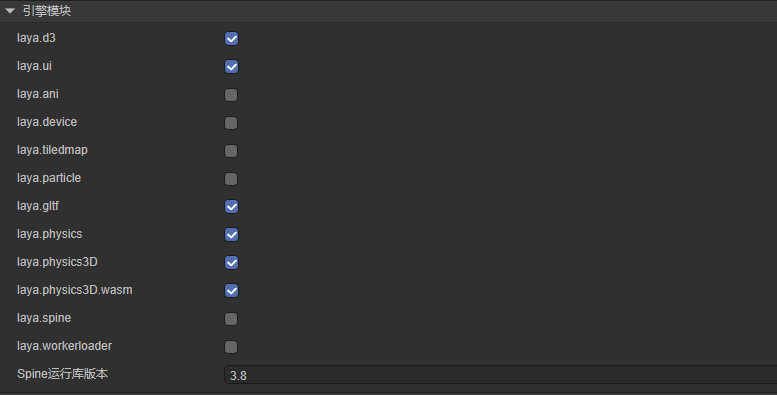

LayaAir Engine consists of multiple modules. Only basic modules are enabled by default (Figure 2-1).

(Figure 2-1)

If your project uses additional features, you must enable the corresponding module, or runtime errors will occur.

2D Modules:

3D Modules:

Common Modules:

Other Modules:

3. Physics System

3.1 2D Physics

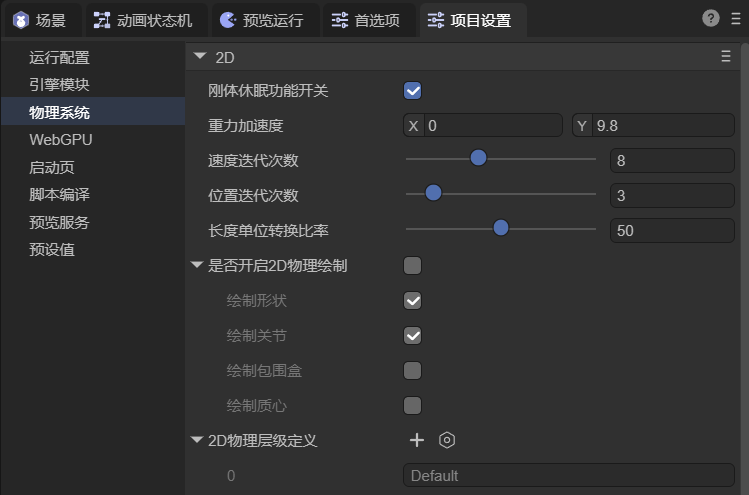

Global configuration options (Figure 3-1):

(Figure 3-1)

3.2 3D Physics

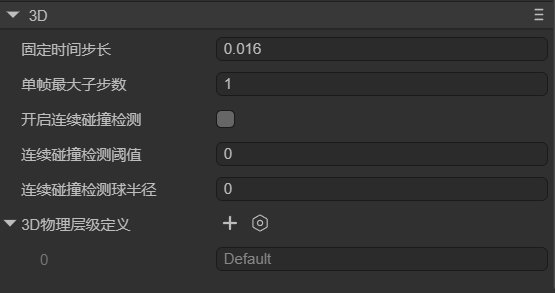

Global configuration options (Figure 3-2):

(Figure 3-2)

4. WebGPU

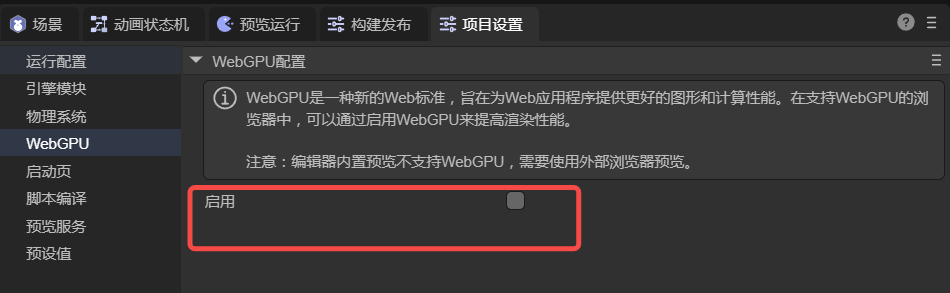

WebGPU is a new web standard providing high-performance rendering and computation. Enable it in supported browsers to improve rendering performance (Figure 4-1).

(Figure 4-1)

Note: IDE preview does not support WebGPU — use an external browser.

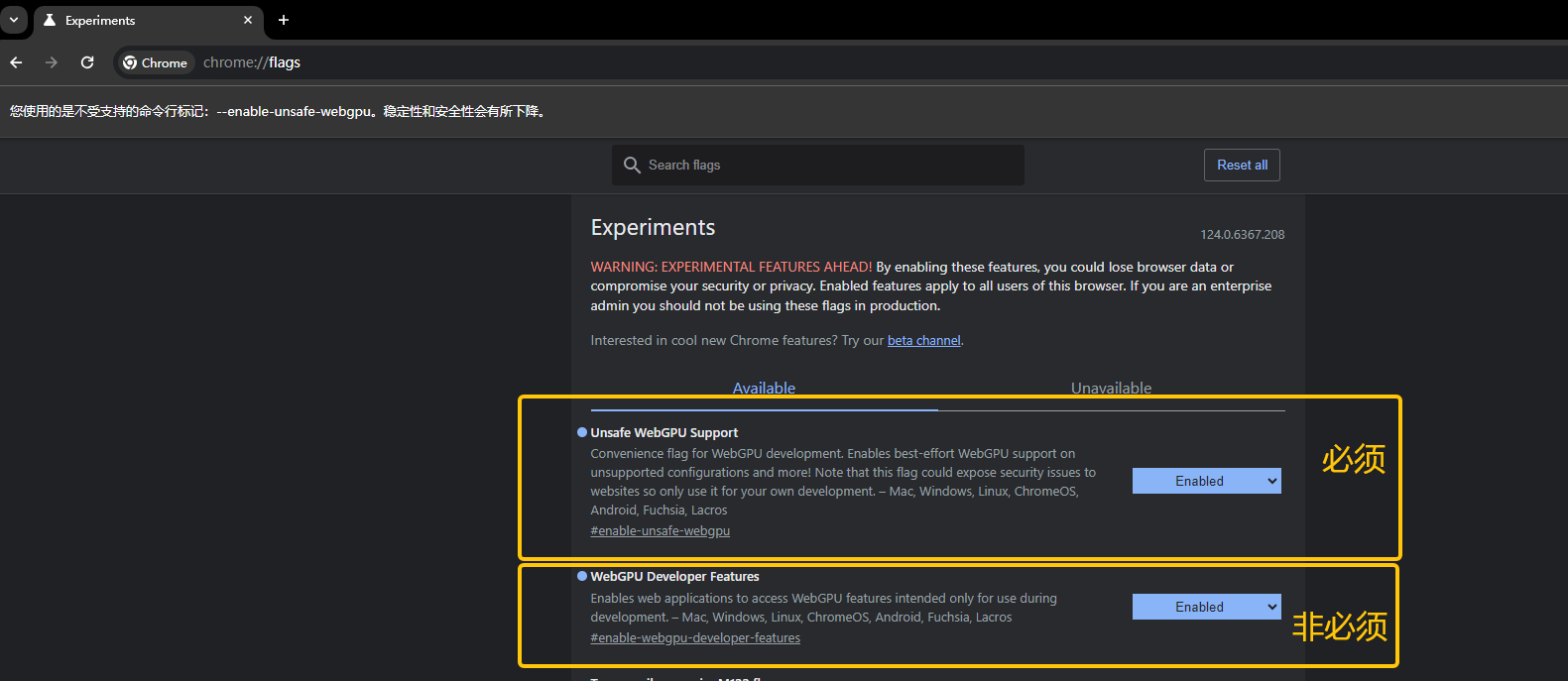

In Chrome, visit chrome://flags and search for WebGPU to enable it (Figure 4-2).

(Figure 4-2)

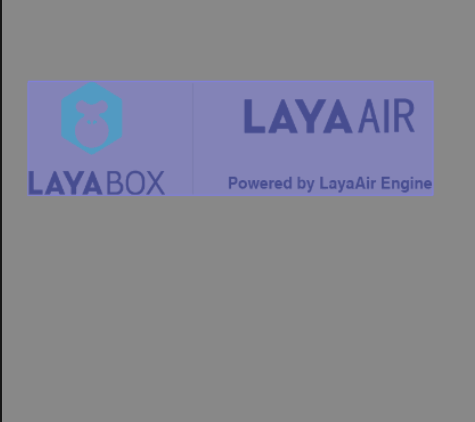

5. Splash Screen

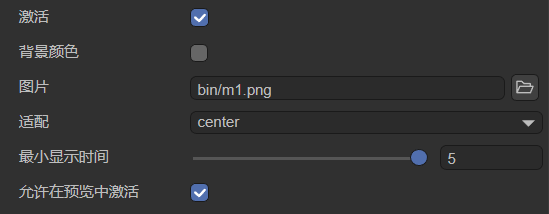

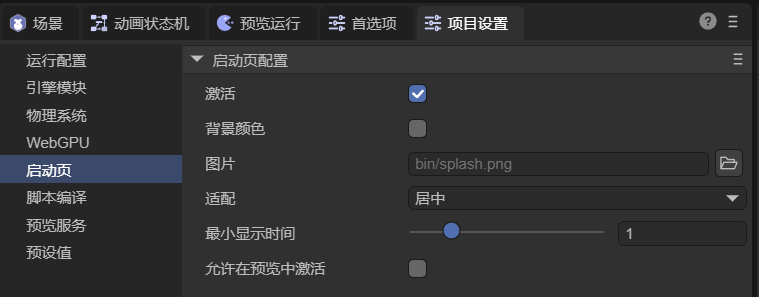

The splash screen displays before the game starts. You can customize it (Figure 5-1).

(Figure 5-1)

6. Script Compilation

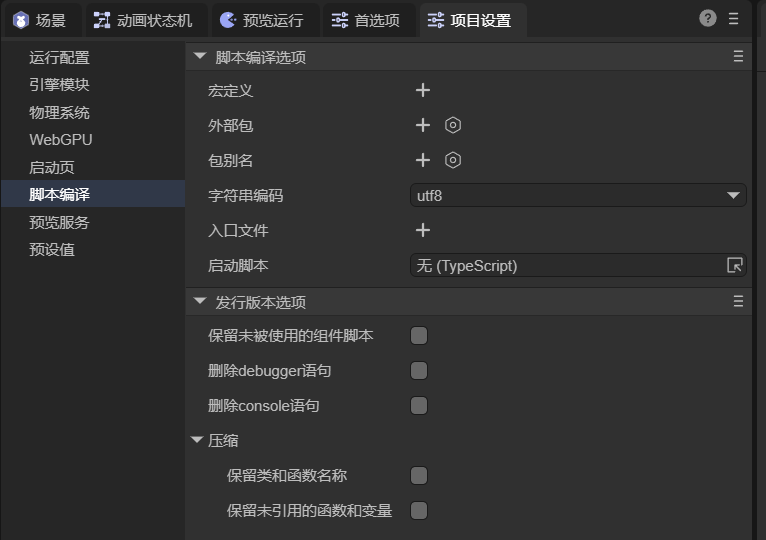

IDE provides script compilation and release options (Figure 6-1).

(Figure 6-1)

Compilation Options:

Release Options:

7. Preview Server

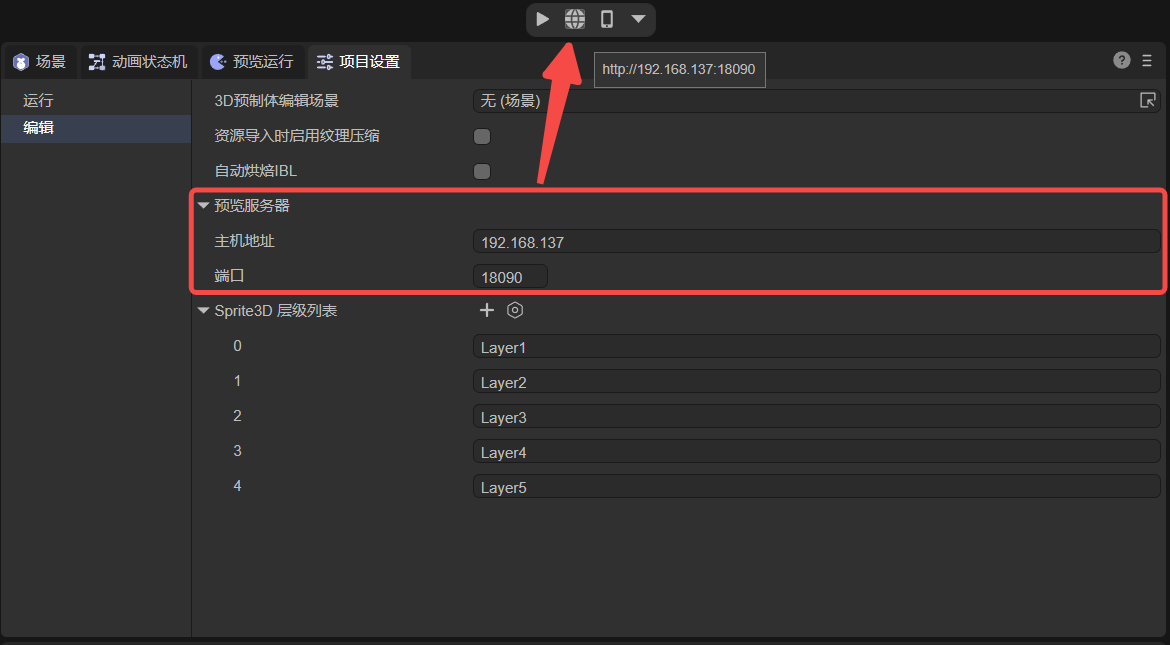

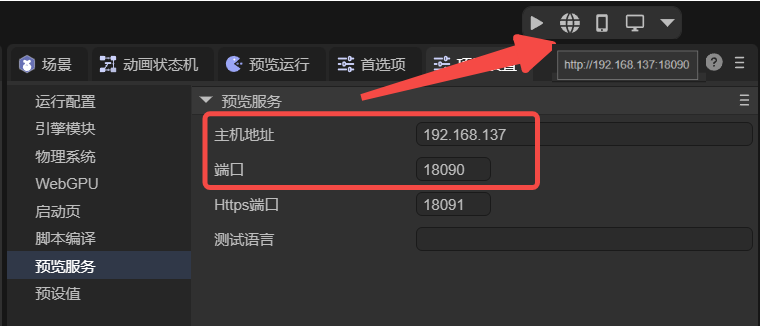

You can configure the preview server address and port (Figure 7-1).

(Figure 7-1)

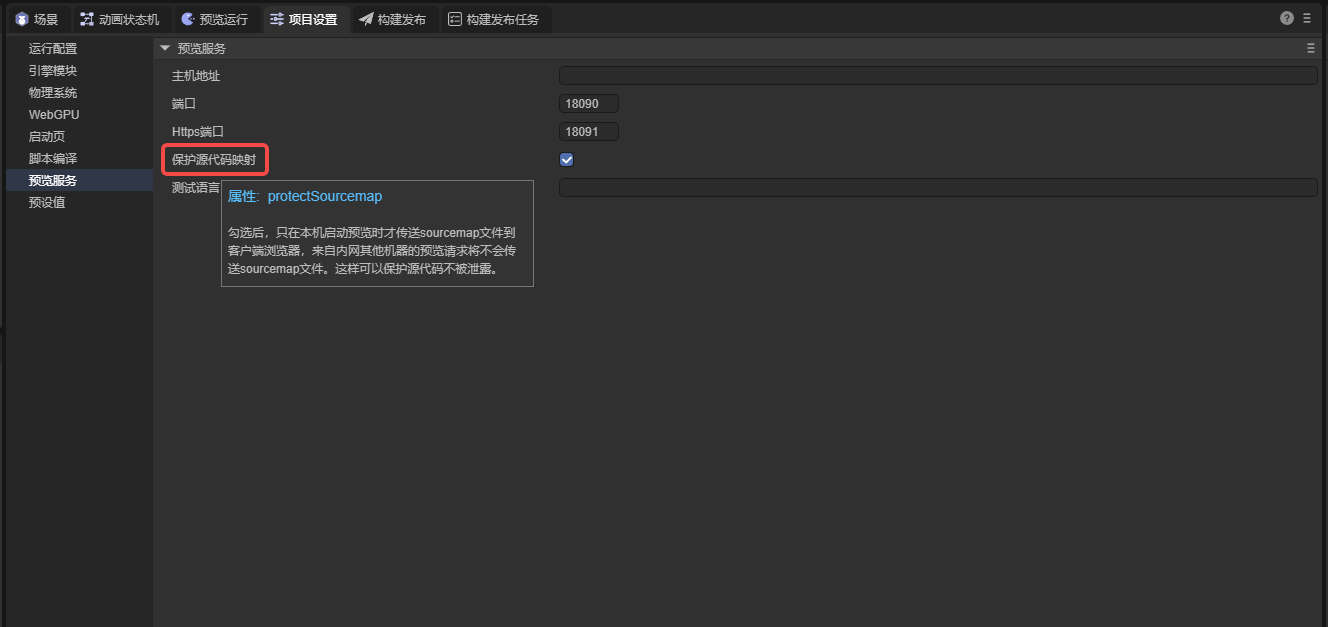

Enabling Protect Source Maps ensures only local preview requests receive .map files, protecting code from internal network leaks (Figure 7-2).

(Figure 7-2)

8. Presets

8.1 Texture Type

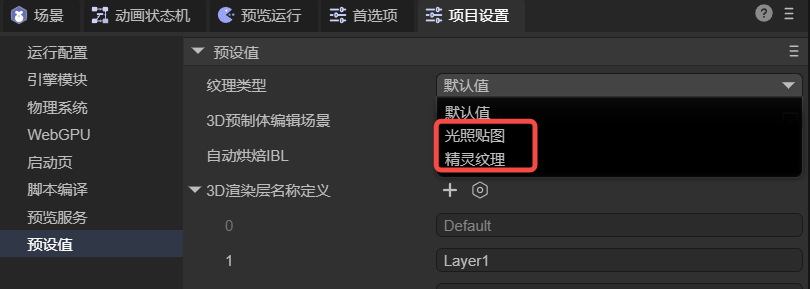

When importing external textures (PNG/JPG), the IDE assigns a default texture type (e.g., Sprite Texture) as shown in Figure 8-1.

(Figure 8-1)

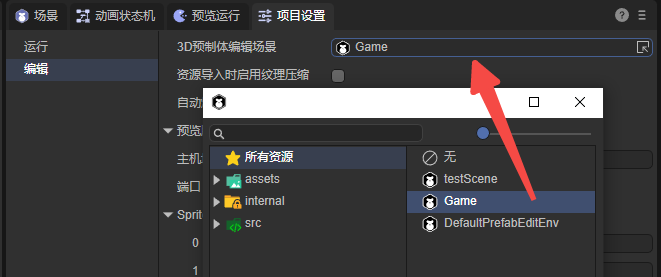

8.2 3D Prefab Editing Scene

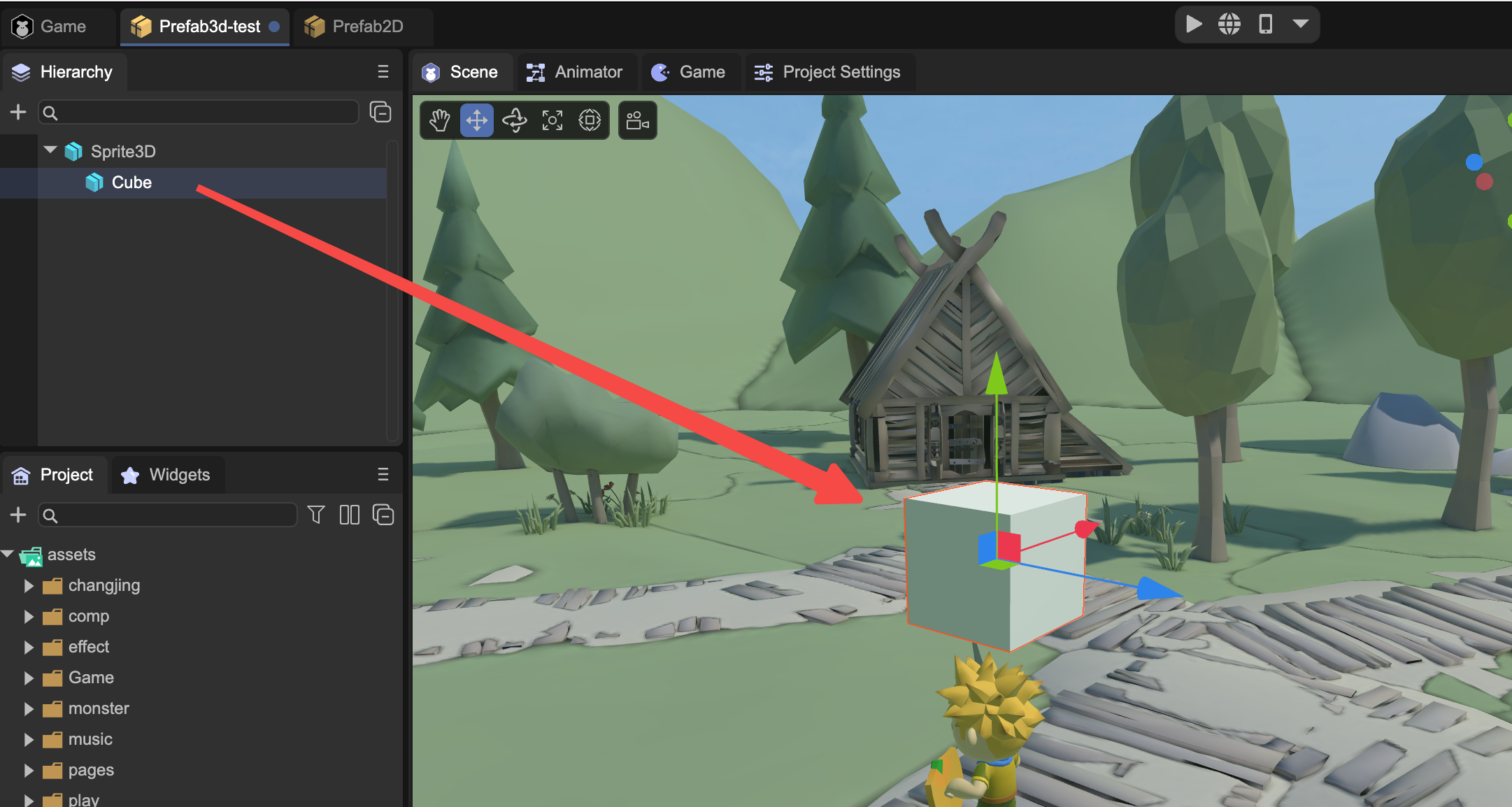

By default, 3D prefabs are edited in a system environment scene (DefaultPrefabEditEnv).

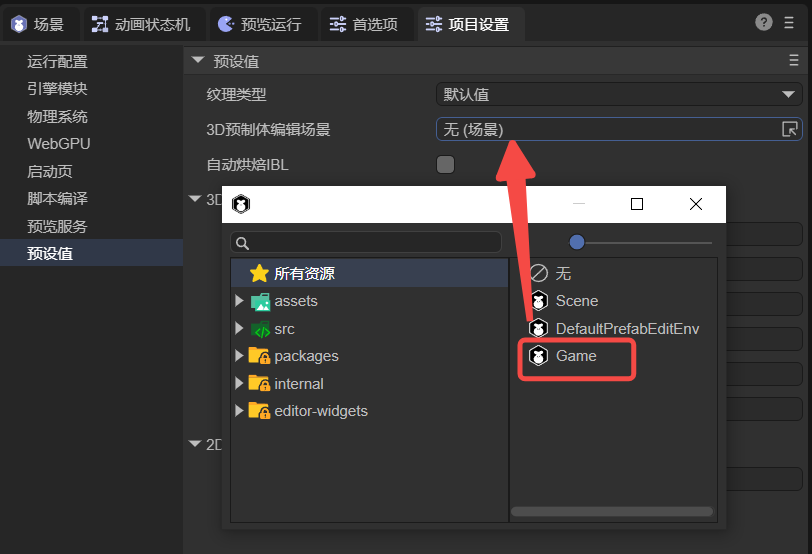

You can specify a custom scene as the prefab editing environment (Figure 8-2).

(Figure 8-2)

8.3 Auto Bake IBL

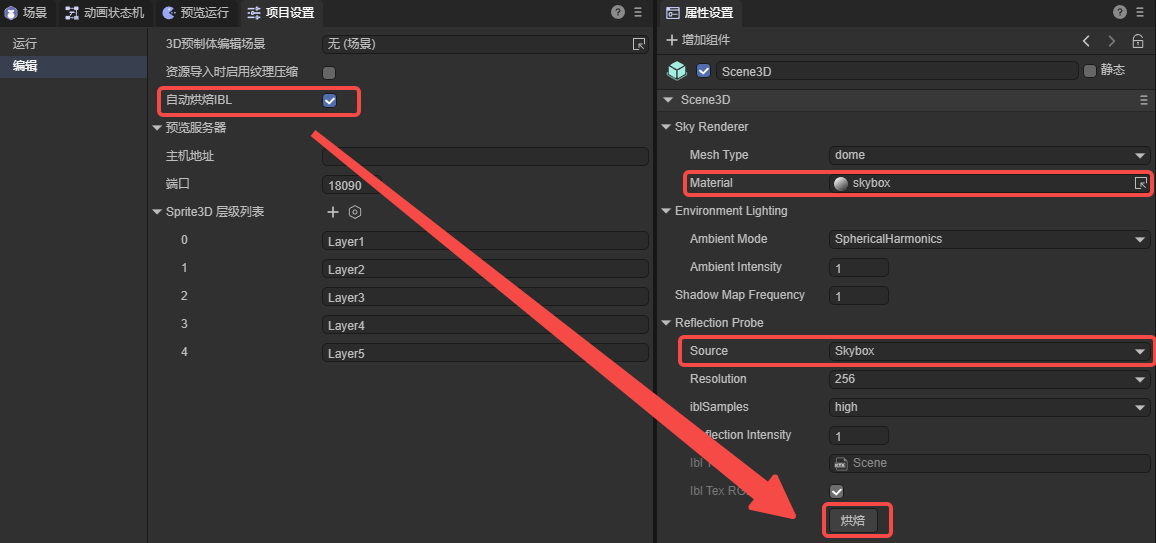

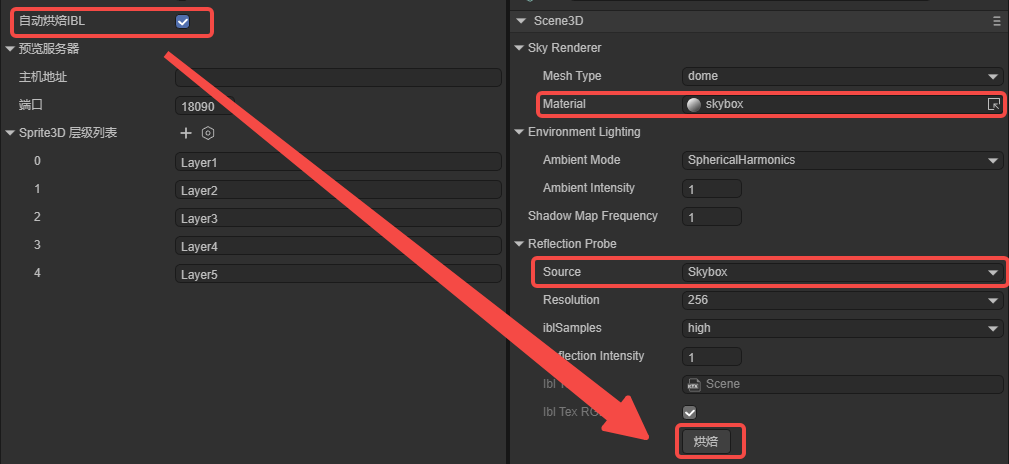

When Auto Bake IBL is checked (Figure 8-3), changing the skybox material in Scene3D will trigger automatic IBL re-baking after saving.

(Figure 8-3)

Only effective when Reflection Probe Source = Skybox. “Custom” sources require manual baking.

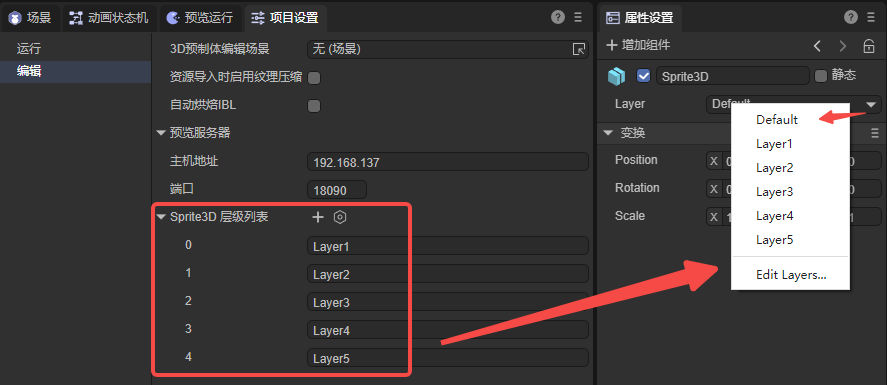

8.4 3D Render Layer Definitions

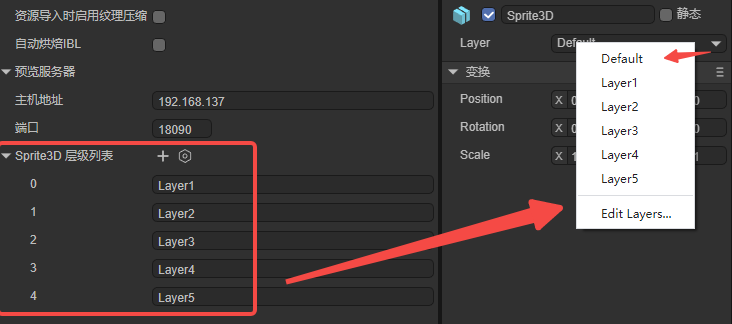

You can add, delete, or rename 3D rendering layers via the editor (Figure 8-4).

(Figure 8-4)

See Using 3D Sprites for more details.

8.5 2D Render Layer Definitions

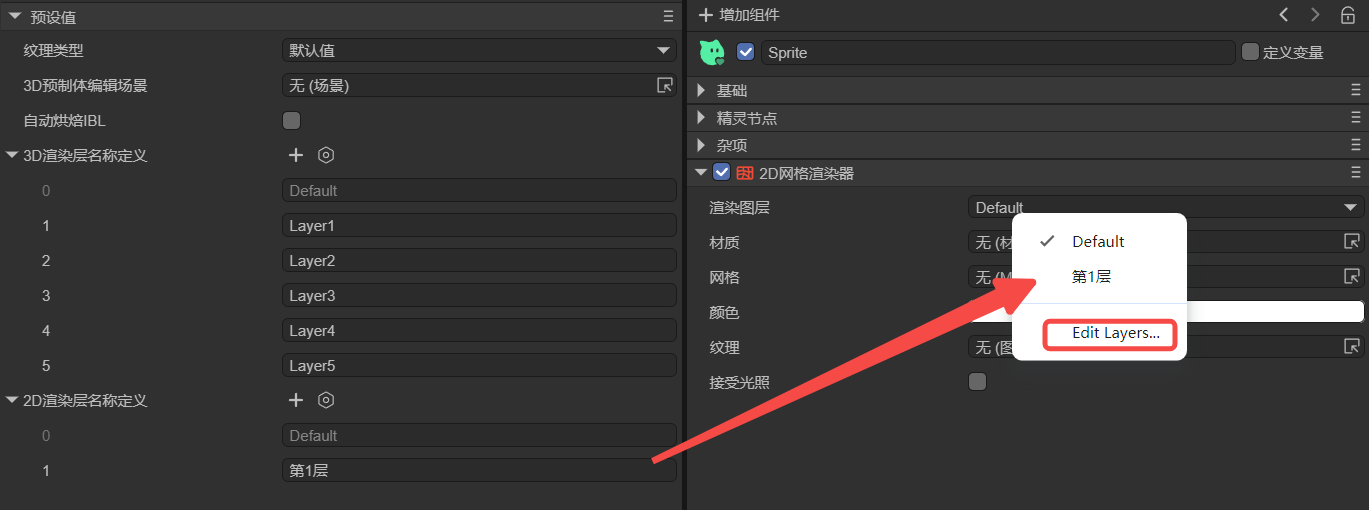

2D rendering components (e.g., mesh renderer, trail, line, light) can specify render layers (Figure 8-5).

(Figure 8-5)
