Vertical Layout Container Component (VBox)

The VBox is a type of container component that inherits from Box. It is used for vertical layout management, providing more refined control compared to the base Box class. For detailed properties of VBox, refer to the API documentation.

1. Creating a VBox Component via LayaAir IDE

1.1 Creating a VBox

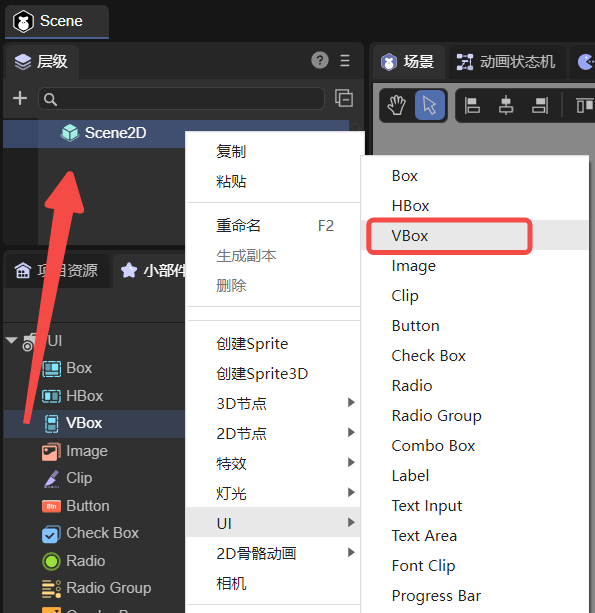

You can visually create a VBox directly in the Hierarchy panel of the IDE, as shown in Figure 1-1. You can either right-click in the Hierarchy window to create it or drag it from the Widget panel into the scene.

(Figure 1-1)

1.2 VBox Properties

The specific properties of the VBox component are as follows:

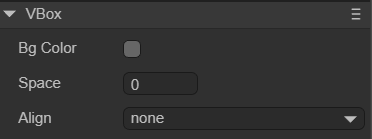

(Figure 1-2)

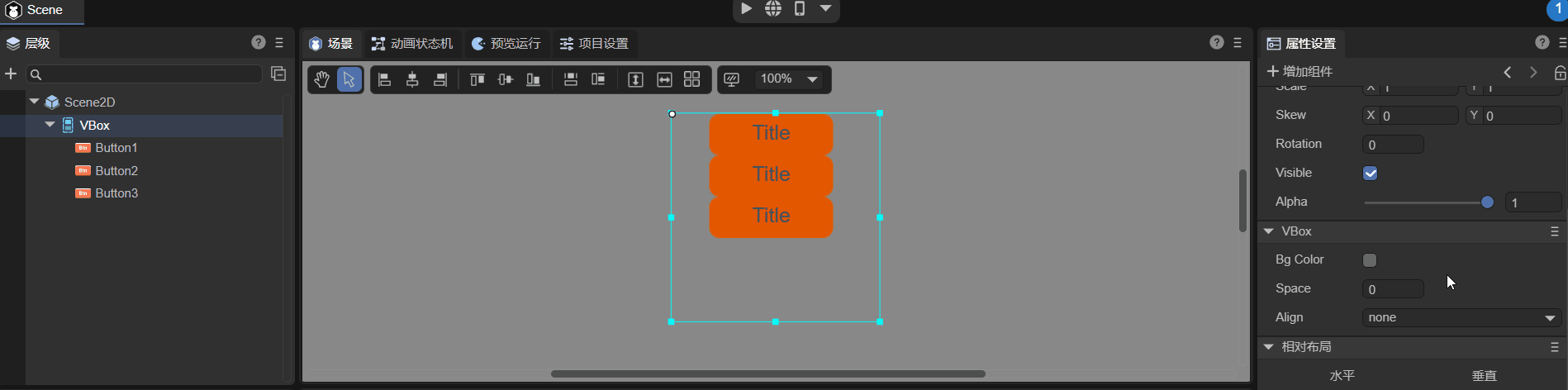

The space property sets the vertical distance between child elements in pixels. You can enter a numeric value manually or adjust it by dragging with the left mouse button. For example, if the VBox contains three Button components, modifying space produces the effect shown in Animation 1-3.

(Animation 1-3)

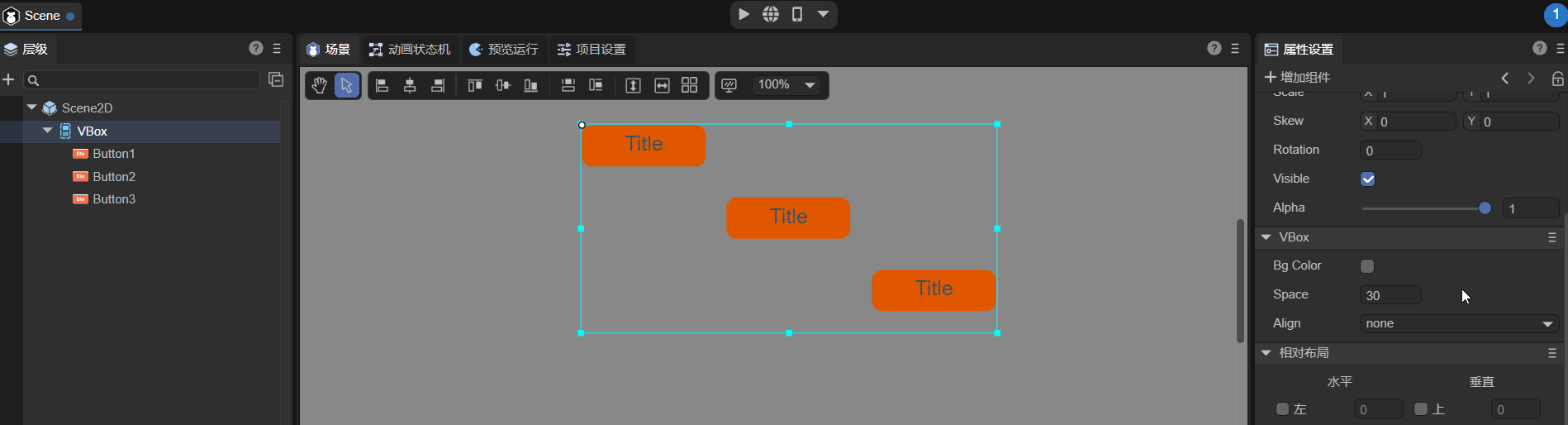

No matter how the child nodes are arranged in the IDE, once the align property is set, they will be rearranged according to the corresponding horizontal alignment, as shown in Animation 1-4.

(Animation 1-4)

If Skip Hidden Nodes is not checked, hidden nodes will still occupy space during layout, as shown in Animation 1-5. Here, the “2” bitmap font node’s disable property is set to true, resulting in a gap.

(Animation 1-5)

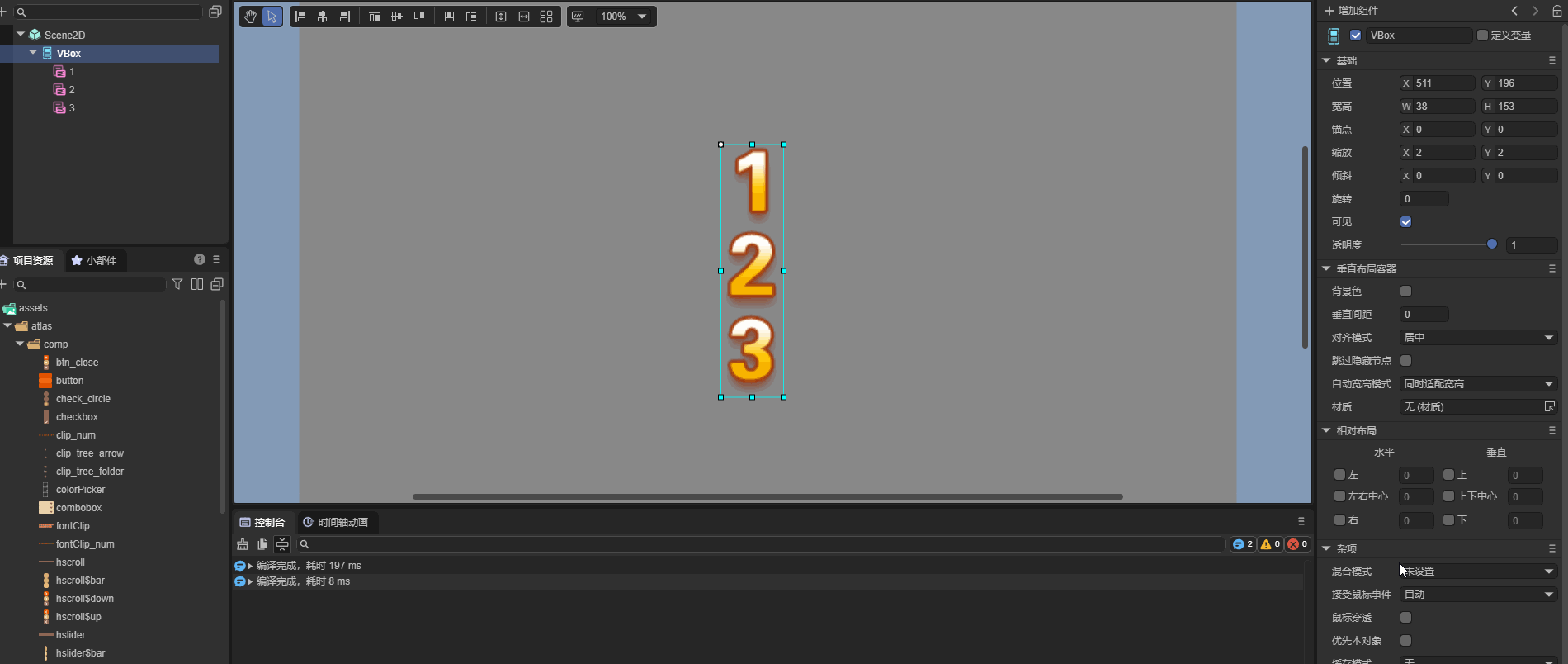

If Skip Hidden Nodes is checked, hidden nodes are ignored, as shown in Animation 1-6.

(Animation 1-6)

The auto size modes mainly include both width & height auto-resize and height-only auto-resize, as shown in Figure 1-7.

(Figure 1-7)

1.3 Controlling VBox with Script

In the Scene2D property panel, add a custom script component. Then, drag the VBox node into the exposed property field. Since one VBox alone cannot demonstrate layout effects, you can add several child nodes under it for testing. Example code:

const { regClass, property } = Laya;

@regClass()
export class NewScript extends Laya.Script {

    @property({ type: Laya.VBox })
    public vbox: Laya.VBox;

    // Executed once when the component is activated, after all nodes and components have been created.
    onAwake(): void {
        this.vbox.pos(100, 100);
        this.vbox.bgColor = "#ffffff";
        this.vbox.space = 30;
        this.vbox.align = "center";
    }
}

2. Creating a VBox Component via Code

Sometimes you may prefer to manage UI creation through code. Here, we create a UI_VBox class to demonstrate how to create a VBox and add three Button components for display.

Example code:

const { regClass, property } = Laya;

@regClass()
export class UI_VBox extends Laya.Script {

    private vbox: Laya.VBox;
    private btn1: Laya.Button;
    private btn2: Laya.Button;
    private btn3: Laya.Button;

    // Button skin resource
    private skins: string = "atlas/comp/button.png";

    // Executed once when the component is activated, after all nodes and components have been created.
    onAwake(): void {
        Laya.loader.load(this.skins).then(() => {
            this.createBtn();
            this.createvbox();
            // Add VBox to the owner
            this.owner.addChild(this.vbox);
        });
    }

    // Create Button components
    private createBtn(): void {
        this.btn1 = new Laya.Button(this.skins);
        this.btn2 = new Laya.Button(this.skins);
        this.btn3 = new Laya.Button(this.skins);
    }

    // Create VBox component
    private createvbox(): void {
        this.vbox = new Laya.VBox;
        this.vbox.pos(100, 100);
        this.vbox.size(600, 300);
        this.vbox.bgColor = "#ffffff";
        this.vbox.addChild(this.btn1);
        this.vbox.addChild(this.btn2);
        this.vbox.addChild(this.btn3);
        this.vbox.space = 80;
        this.vbox.align = "center";
    }
}
