Video Node (VideoNode)

1. Using the Video Node in LayaAir IDE

1.1 Creating a VideoNode

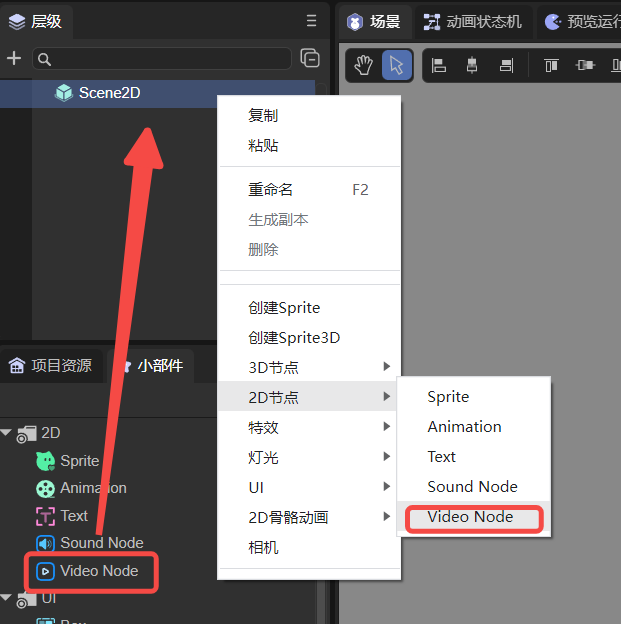

As shown in Figure 1-1, you can create a VideoNode by right-clicking in the Hierarchy window, or by dragging it from the Widget panel into the scene.

(Figure 1-1)

1.2 Property Overview

After adding a VideoNode to the scene view, its dedicated properties appear in the property panel, as shown in Figure 1-2.

(Figure 1-2)

Property	Description
source	The video source.
mode	Playback mode — there are two options: player and decoder. If the selected mode is unsupported, the other mode will be used automatically. Details below.
autoplay	Whether the video plays automatically when added to the stage. Default is `false`.
allowBackground	Whether background playback is allowed. Default is `false`.
loop	Whether the video loops. Default is `false`.
muted	Mutes the video when enabled. Default is `false`.
controls	Whether to show the video’s control UI. Default is `false`.
underGameView	Whether to display the video beneath the game canvas. Default is `false`. (The canvas must be transparent for this option to work.)
objectFit	The video scaling mode. Options: `fill`, `contain`, `cover`. Default is `contain`. Details below.

1.3 Playback Mode (mode)

The two playback modes behave differently:

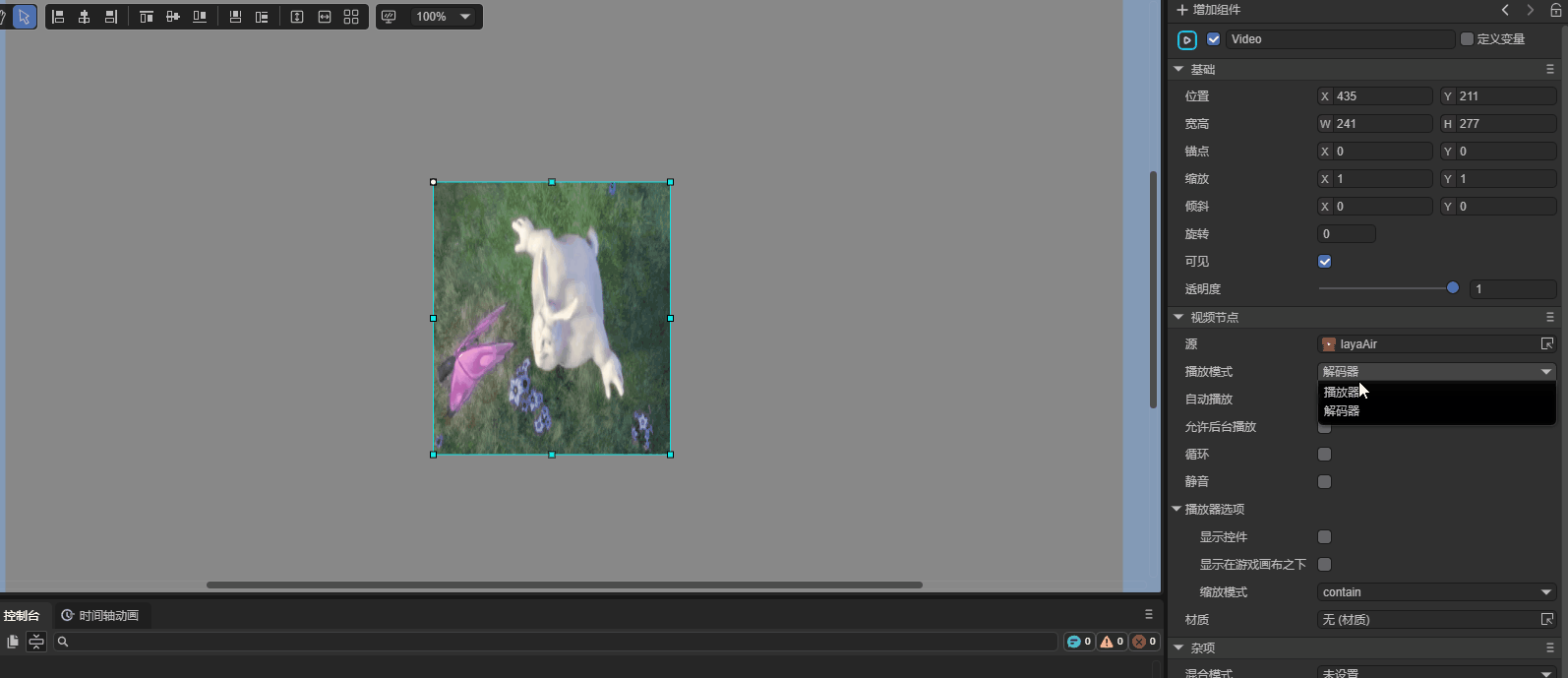

When using decoder mode, the video is captured as a texture, matching the node’s width and height, as shown in Animation 1-3.

(Animation 1-3)

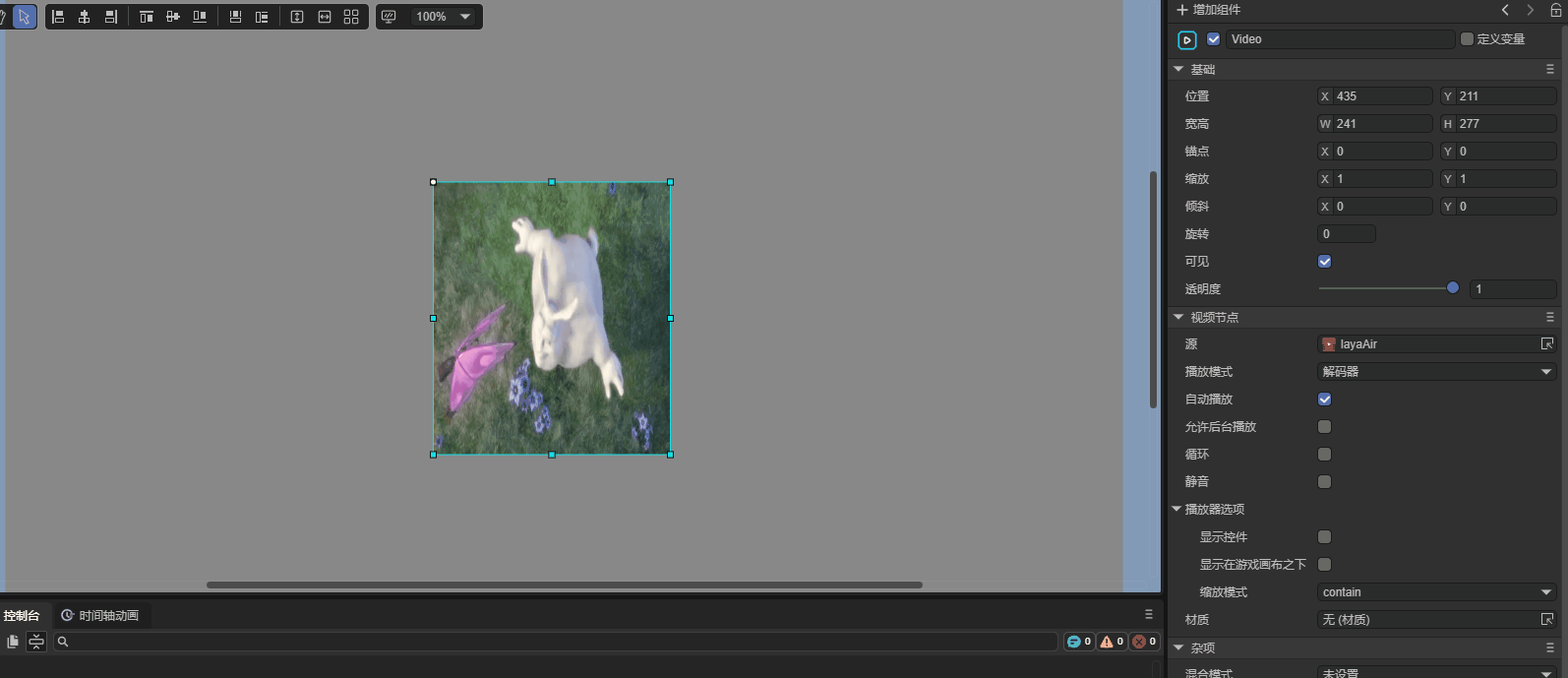

When using player mode, the video floats above the main canvas and maintains its original aspect ratio, as shown in Animation 1-4.

(Animation 1-4)

1.4 Scaling Mode (objectFit)

The objectFit property defines how the video scales within its container:

fill: The video stretches to completely fill the container, ignoring its original aspect ratio. (Figure 1-5)

(Figure 1-5)

contain: Preserves the original aspect ratio so that the video fits entirely within the container, possibly leaving empty space. (Figure 1-6)

(Figure 1-6)

cover: Preserves the original aspect ratio while ensuring the video covers the container. Parts of the video may be cropped. (Figure 1-7)

(Figure 1-7)

1.5 Controlling VideoNode via Script

After assigning a video file to the Source property (as described in section 1.2), the video will not play automatically. You must control it through code. In the Scene2D property panel, add a custom component script and drag the VideoNode into its exposed property slot. Example:

const { regClass, property } = Laya;

@regClass()
export class NewScript extends Laya.Script {

    @property({ type: Laya.VideoNode })
    public video: Laya.VideoNode;

    constructor() {
        super();
    }

    // Executes once after all nodes and components are created
    onAwake(): void {
        // Play video when user clicks
        Laya.stage.on(Laya.Event.MOUSE_DOWN, () => {
            Laya.loader.load("resources/layaAir.mp4").then(() => {
                this.video.play(); // Play video
            });
        });
    }
}

When running inside the LayaAir IDE, the VideoNode can play automatically. However, in browsers such as Chrome, automatic playback is only allowed if muted autoplay is enabled. To play with sound, user interaction (e.g., click or tap) is required.

You can also control the video’s texture update rate through code, as some browsers have different playback policies:

const { regClass, property } = Laya;

@regClass()
export class NewScript extends Laya.Script {

    @property({ type: Laya.VideoNode })
    public video: Laya.VideoNode;

    onEnable(): void {
        // Play video on click
        Laya.stage.on(Laya.Event.MOUSE_DOWN, () => {
            // Set video texture update rate
            this.video.videoTexture.useFrame = true;
            this.video.videoTexture.updateFrame = 30;

            this.video.play();
        });
    }
}

2. Creating a VideoNode via Code

If you don’t want the VideoNode to appear on stage at startup, you can create it dynamically in code. Add a custom script in Scene2D, for example:

const { regClass, property } = Laya;

@regClass()
export class NewScript extends Laya.Script {

    constructor() {
        super();
    }

    // Executes once when all nodes and components are ready
    onAwake(): void {
        let video = new Laya.VideoNode();
        // Add to stage
        Laya.stage.addChild(video);
        video.pos(200, 200); // Set position
        video.source = "resources/layaAir.mp4"; // Set video source
        video.play(); // Start playback
    }
}
