Audio node (SoundNode)

1. Using audio nodes in LayaAir IDE

1.1 Create SoundNode

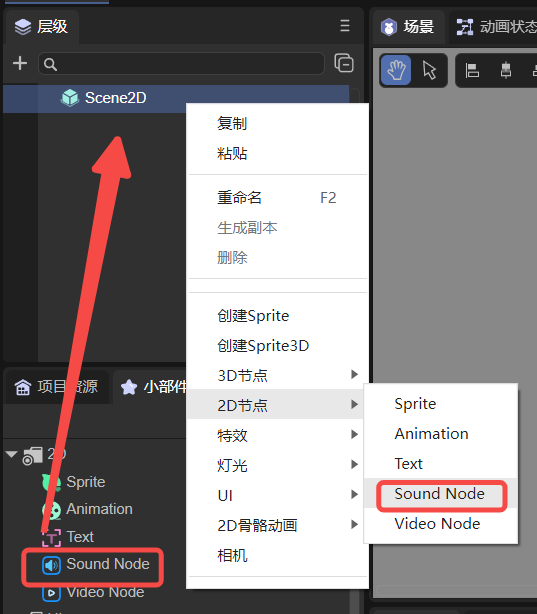

As shown in Figure 1-1, you can right-click in the 'Hierarchy' window to create it, or you can drag and drop from the 'Widgets' window to add it.

(Picture 1-1)

1.2 Attribute introduction

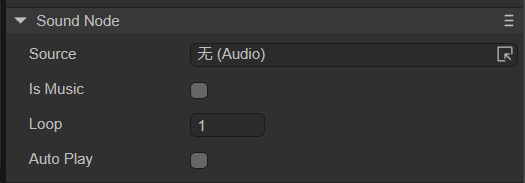

In the IDE, after adding the SoundNode node to the view area of the scene editor, the exclusive properties of the SoundNode in the property panel are as shown below:

(Figure 1-2)

These properties are introduced below:

Attribute name	Attribute description
Source	Add audio file source
IsMusic	Whether it is background music. After checking, the current audio is background music. If there are two audios with IsMusic checked, they cannot be played at the same time, only one can be played. If unchecked, the current audio file can be played simultaneously with background music and other audio
Loop	The number of times to loop. Set to 0, it is an endless loop; set to 1, it only plays once
AutoPlay	Whether to automatically play when running

1.3 Script control SoundNode

In the Scene2D property settings panel, add a custom component script. Then, drag the SoundNode into its exposed property entry. Here is a sample code to implement script control of SoundNode:

const { regClass, property } = Laya;

@regClass()
export class NewScript extends Laya.Script {
    //declare owner : Laya.Sprite3D;

    @property({ type: Laya.SoundNode })
    public sound: Laya.SoundNode;

    constructor() {
        super();
    }

    /**
     * Executed after the component is activated. At this time, all nodes and components have been created. This method is only executed once.
     */
    onAwake(): void {
        this.sound.source = "resources/sound.wav"; //Audio path
        this.sound.loop = 0; //Loop times setting should be placed before autoPlay parameter setting
        this.sound.autoPlay = true; //Auto play
        this.sound.isMusic = false; //Whether it is background music

    }
}

2. Code to create SoundNode

The SoundNode node only has sound effects at runtime. If you don't want to add and drag it to the property entrance exposed by the decorator in the IDE and do such a cumbersome operation, you can create it through code. In the property settings panel of Scene2D, add a custom component script. The sample code is as follows:

const { regClass, property } = Laya;

@regClass()
export class NewScript extends Laya.Script {
    //declare owner : Laya.Sprite3D;

    constructor() {
        super();
    }

    /**
     * Executed after the component is activated. At this time, all nodes and components have been created. This method is only executed once.
     */
    onAwake(): void {
        let sound = new Laya.SoundNode();
        //Add to stage
        Laya.stage.addChild(sound);
        sound.source = "resources/sound.wav"; //Audio path
        sound.loop = 0; //Loop times setting should be placed before autoPlay parameter setting
        sound.autoPlay = true; //Auto play
        sound.isMusic = false; //Whether it is background music
    }
}
