Built-in skeletal animation

1. Overview

Spine skeletal animation and DragonBones (dragon bone) skeletal animation are commonly used skeletal animations in games. Using LayaAir's built-in skeletal conversion tool, these two formats can be converted into skeletal animation formats supported by the LayaAir engine.

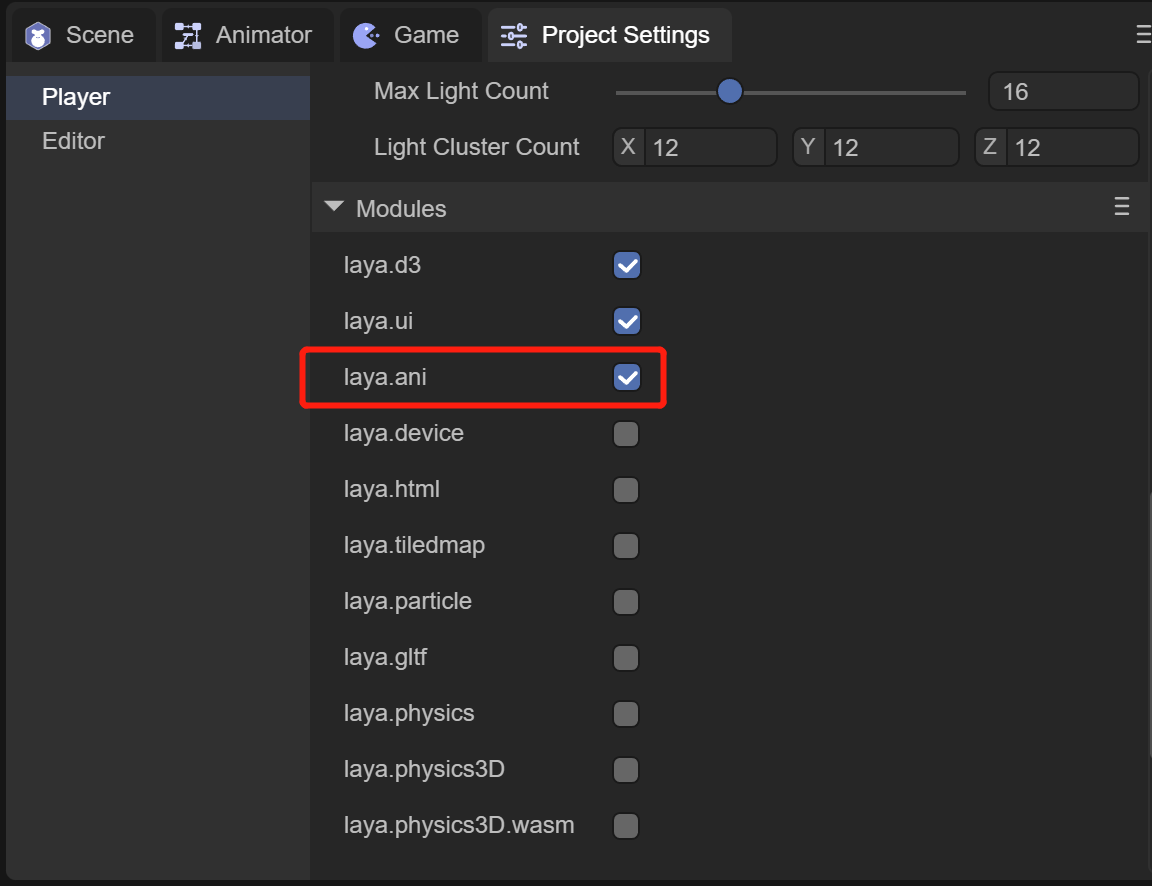

LayaAir IDE supports adding, previewing and running skeletal animation. Before use, you need to check the laya.ani class library in the IDE, as shown in Figure 1-1

(Picture 1-1)

2. Use built-in skeletal animation in IDE

2.1 Copy animation resources to the project

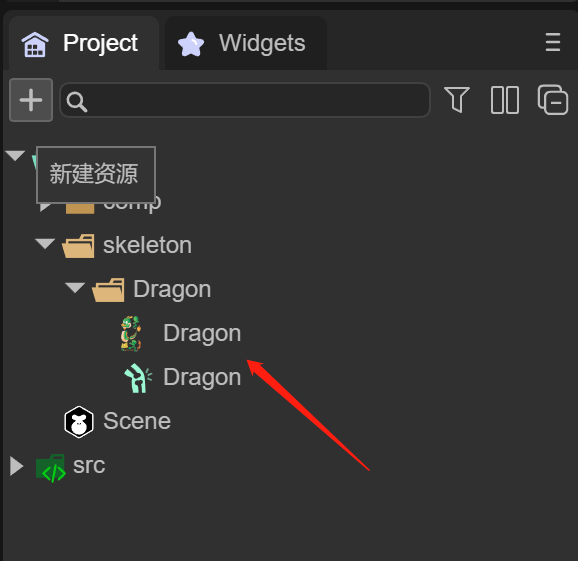

As shown in Figure 2-1, we put the completed animation resources into the assets directory.

(Figure 2-1)

2.2 Add built-in skeletal animation components to the scene

There are two ways in the IDE to add built-in skeletal animation components to the scene.

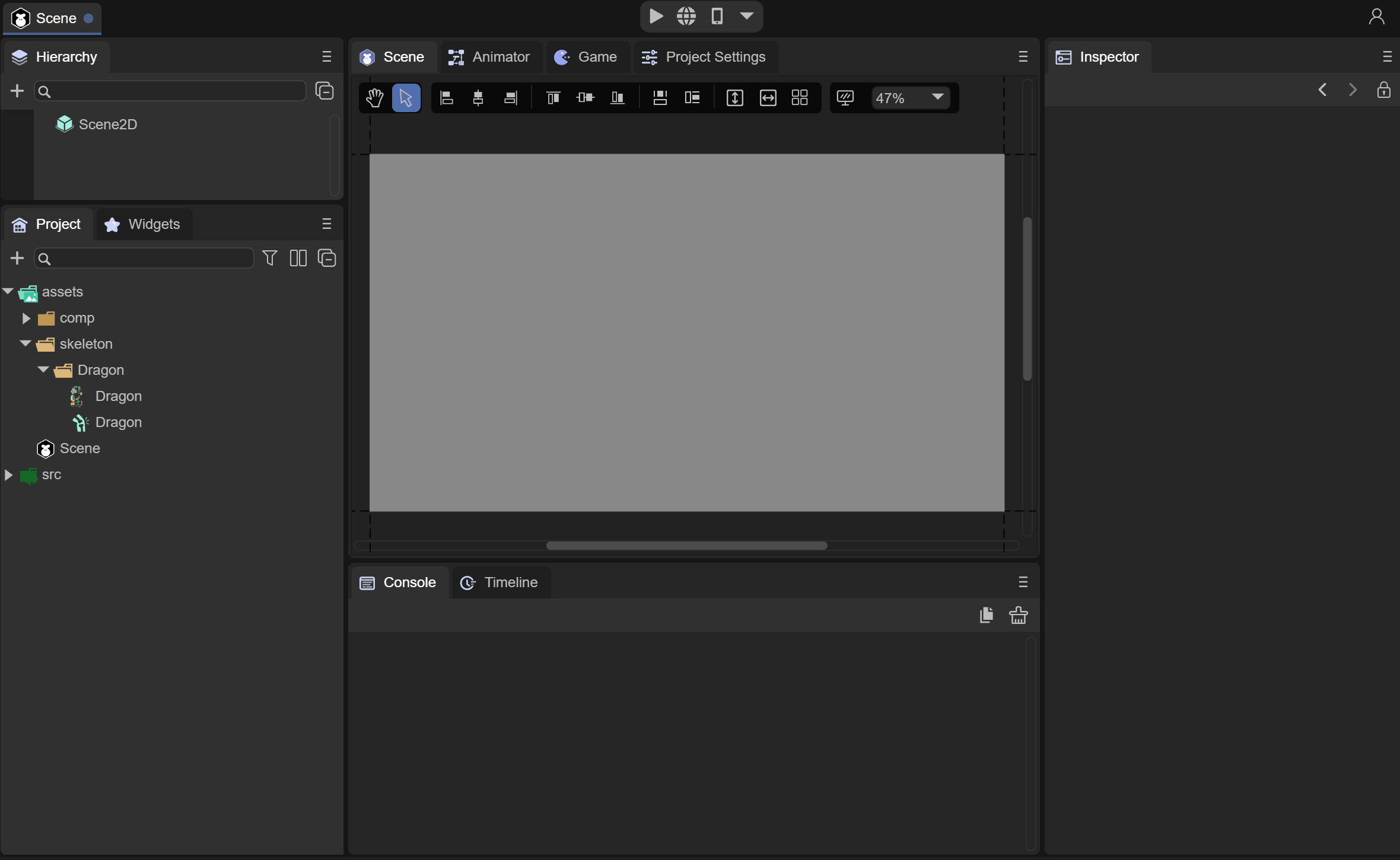

1. Drag the skeletal animation component directly, as shown in animation 2-2

(Animation 2-2)

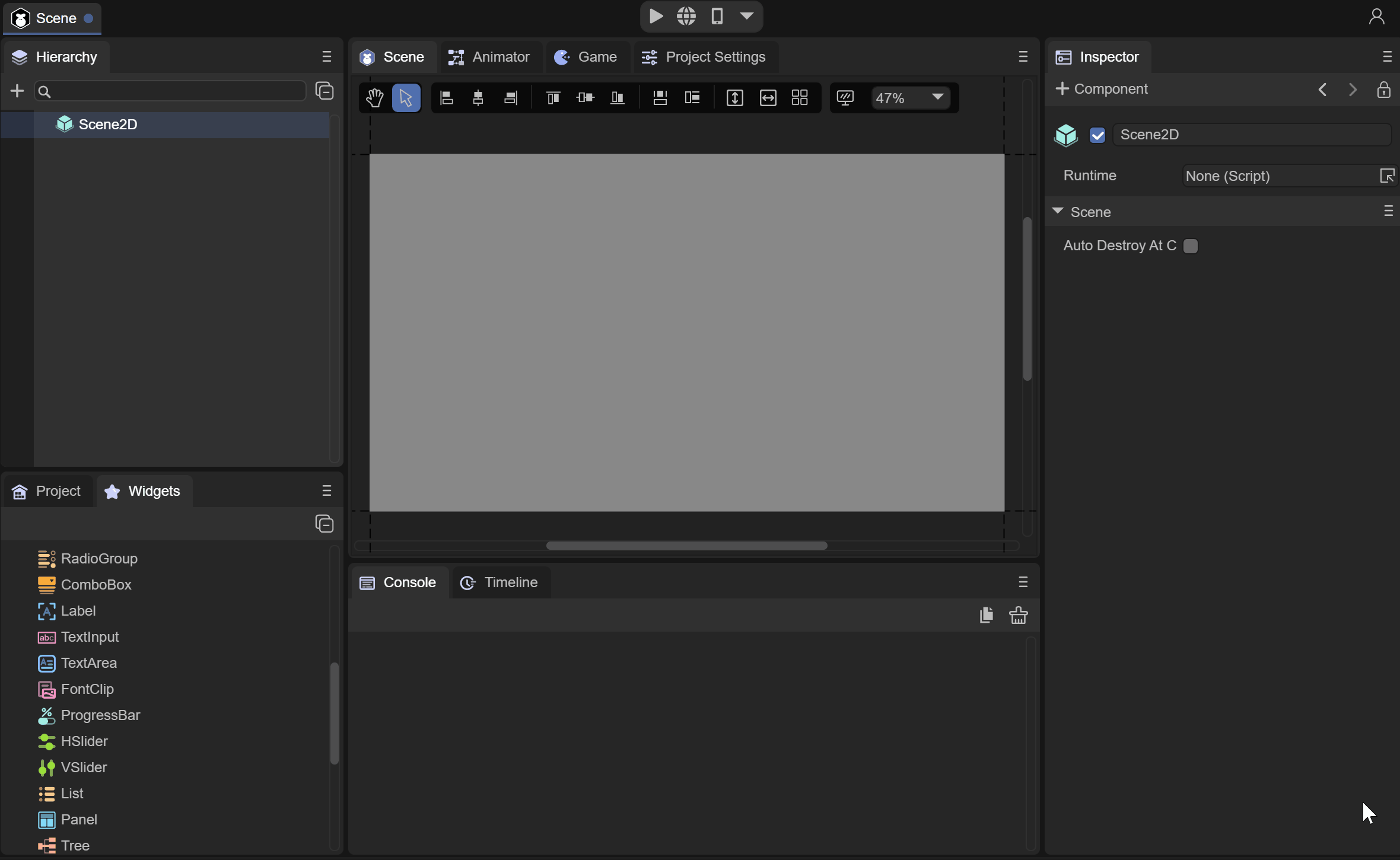

1. Create a skeletal animation component through Scene2D or any node, as shown in animation 2-3

(Animation 2-3)

At this point the skeletal animation component is ready. The next step is to drag in the animation resources.

2.3 Set animation resources

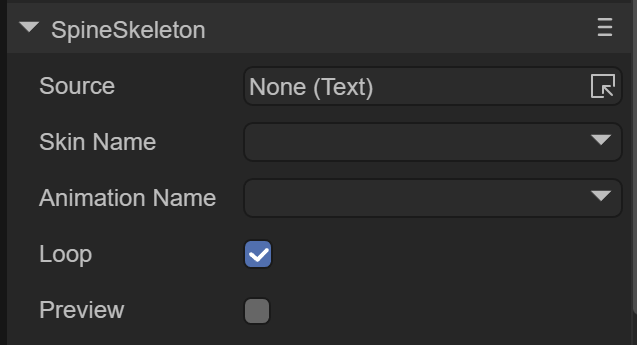

Let’s first take a look at the skeletal animation components and what properties they have, as shown in Figure 2-4

(Figure 2-4)

Source: skeletal animation configuration file, that is, .sk file

Skin Name: skeleton animation name

Animation Name: Play animation name

Loop: Whether to loop playback

Preview: Preview in IDE

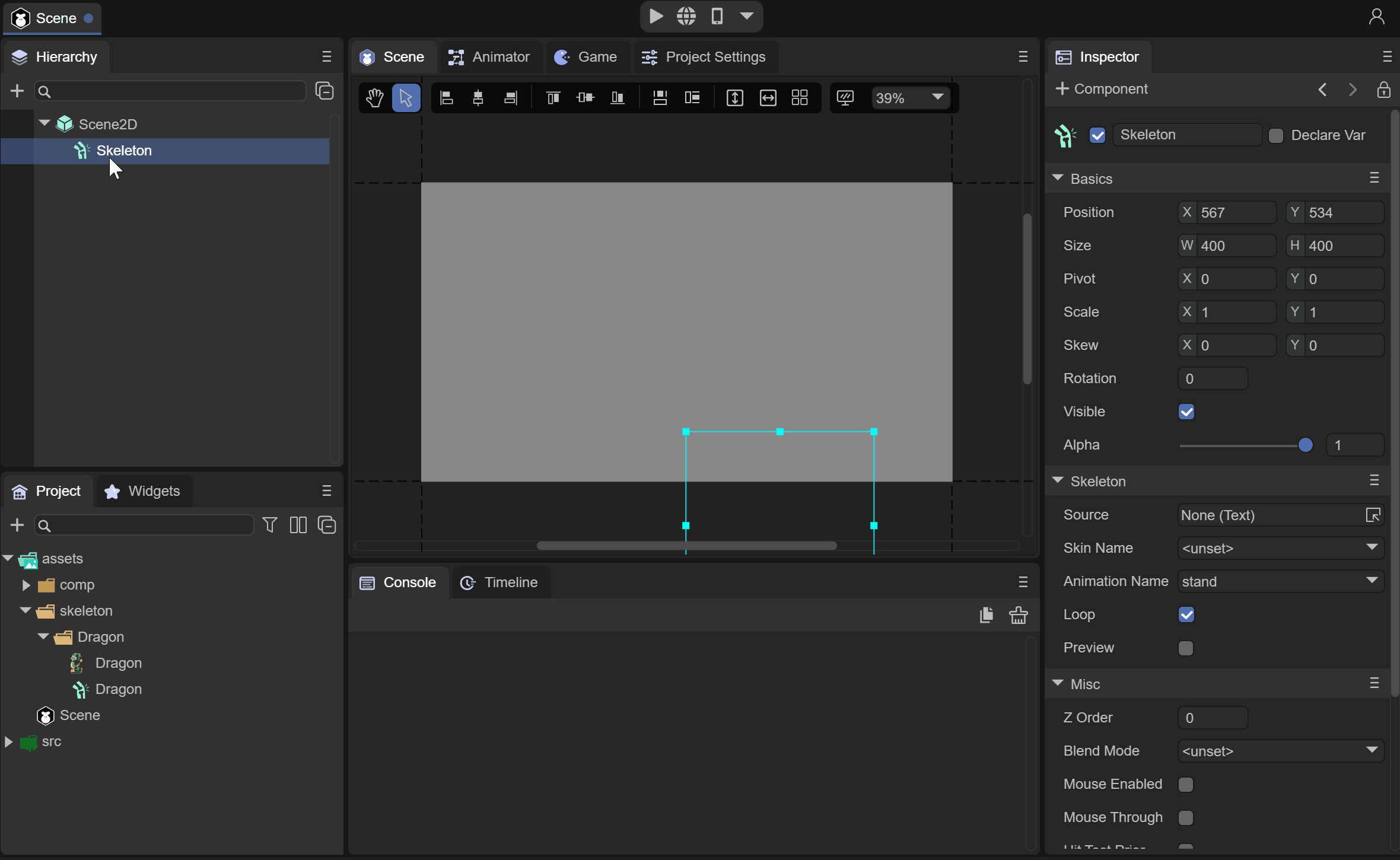

First, we drag the .sk file into the Source property, and we will see the animation in the IDE, as shown in animation 2-5

(Animation 2-5)

2.4 Preview animation in IDE

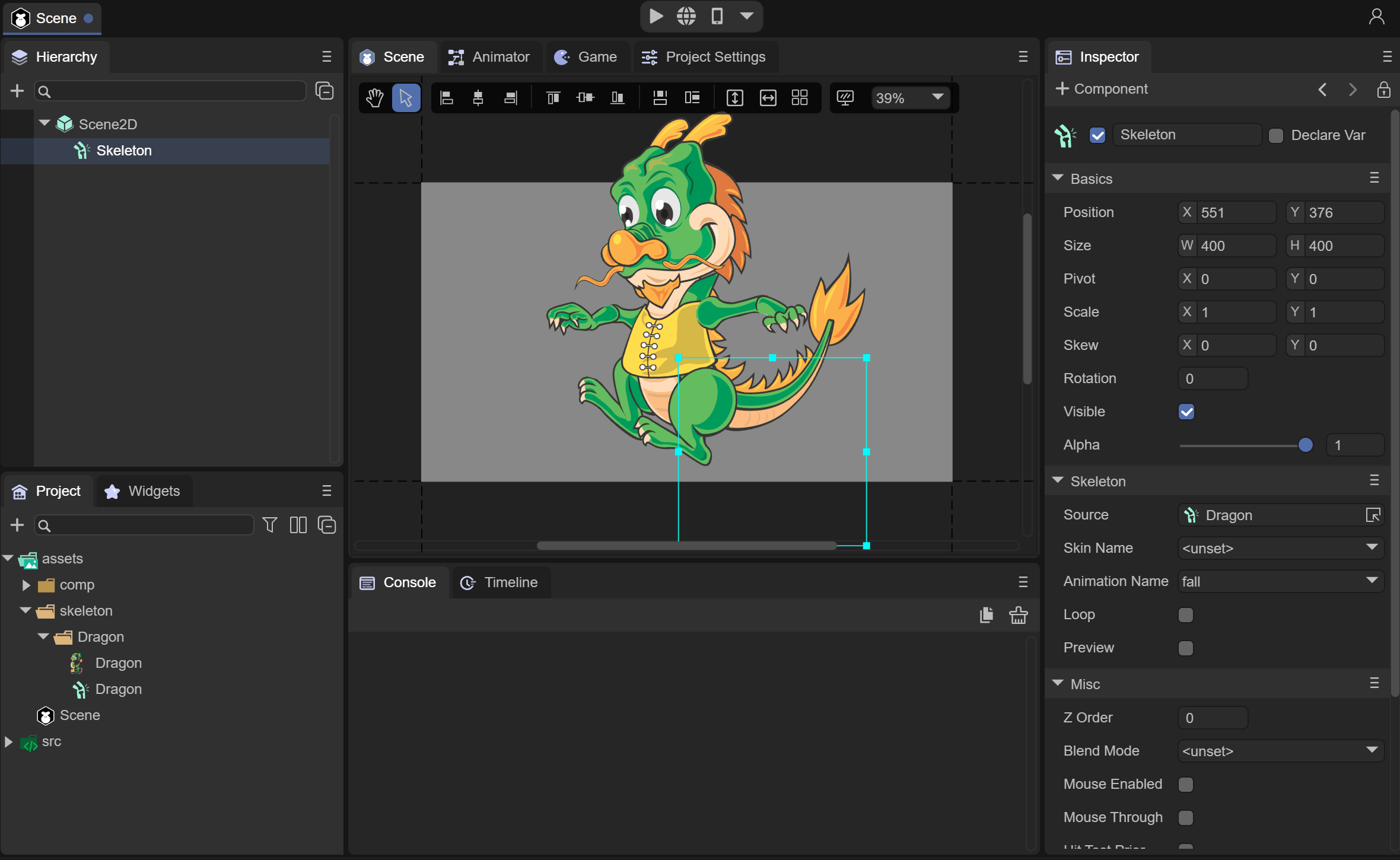

By checking the Preview option, we can preview the skeletal animation effect directly in the IDE, as shown in animation 2-6

(Animation 2-6)

At the same time, you can check Loop to set whether to loop the animation, or you can select the animation name to switch the animation.

2.5 Basic animation operations

In the IDE, you can perform basic operations on the position, size, and scaling of the animation, as shown in animation 2-7.

(Animation 2-7)

3. Built-in skeletal animation in the code

When used in code, we need to reference and specify the Laya.Skeleton and Laya.Templet classes when using skeletal animation

Among them, Laya.Skeleton is a class that must be referenced for skeletal animation, and Laya.Templet is used to process resources.

Code example:

const { regClass, property } = Laya;

@regClass()
export class Main extends Laya.Script {

    private mCurrIndex: number = 0;
    private mArmature: Laya.Skeleton;

    onStart() {
        console.log("Game start");
        //Load built-in skeletal animation resources
        Laya.loader.load("skeleton/Dragon/Dragon.sk").then((templet: Laya.Templet) => {
            //Creation mode is 1, you can enable dress-up
            this.mArmature = templet.buildArmature(0);
            this.mArmature.x = 300;
            this.mArmature.y = 350;
            this.mArmature.scale(0.5, 0.5);
            this.owner.addChild(this.mArmature);
            //After setting the animation to complete, call completeHandler to continue playing the next animation.
            this.mArmature.on(Laya.Event.STOPPED, this, this.completeHandler);
            this.play();
        });
    }


    private completeHandler(): void {
        this.play();
    }

    //Play skeleton animation
    private play(): void {
        //Each time to the next animation
        this.mCurrIndex++;
        if (this.mCurrIndex >= this.mArmature.getAnimNum()) {
            this.mCurrIndex = 0;
        }
        this.mArmature.play(this.mCurrIndex, false);
    }
}

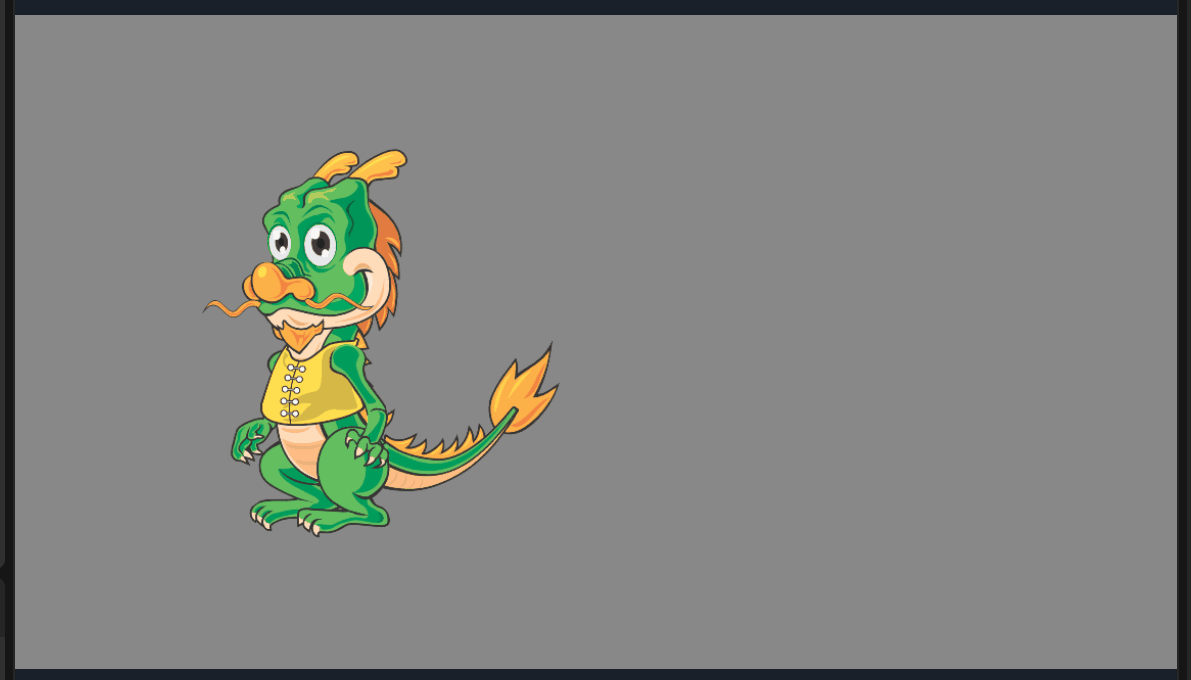

The operation effect is as follows

(Animation 3-1)

You can view the specific effects in the LayaAir 2D Getting Started Example.
