2D Camera

The 2D camera is a camera node applied in a 2D scene. It causes the rendered area in the scene to follow the movement of this node. Through the 2D camera, developers can conveniently and quickly achieve many game effects, such as scrolling the scene, following the movement of the character with the viewpoint, etc.

1. Creating a 2D Camera

It should be noted that the 2D camera must be used as a child node of the 2D area node. Adding a 2D camera alone to the scene is not allowed.

1.1 Creating a 2D Camera through LayaAir IDE

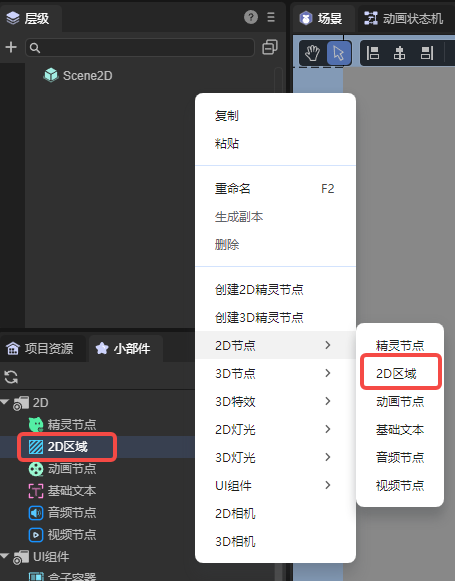

First, we create a 2D area node in the hierarchy panel, or we can also drag and add a 2D area node in the widget window:

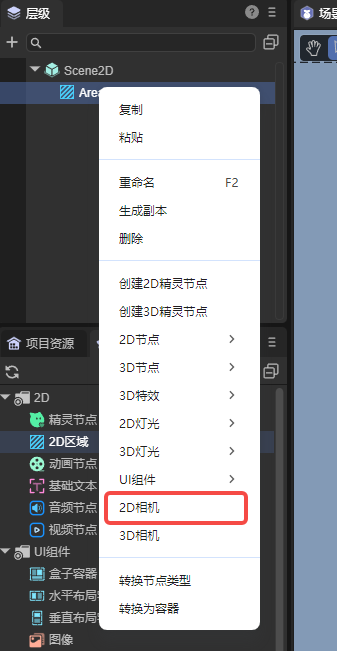

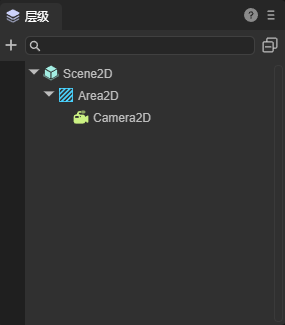

Next, add a 2D camera node as a child node of the 2D area node in the hierarchy panel.

1.2 Creating a 2D Camera through Code

If developers want to create a 2D camera dynamically during program runtime, they need to create it through code. The sample code is as follows:

const { regClass, property } = Laya;

@regClass()
/**
 * Script for creating a 2D camera. Developers can add this script to the 2D scene to view the effect
 */
 export class Script extends Laya.Script {

    declare owner : Laya.Scene;

    area2D: Laya.Area2D;
    camera2D: Laya.Camera2D;

    // Executed after the component is activated. At this time, all nodes and components have been created. This method is executed only once
    onAwake(): void {
        this.createCamera2D();
    }

    createCamera2D() {
        // The 2D camera must be added under the 2D area node, so a 2D area node needs to be created first
        this.area2D = new Laya.Area2D();
        // Set the position and size of the 2D area node
        this.area2D.pos(100, 100);
        this.area2D.size(200, 200);
        this.owner.addChild(this.area2D);

        // Create the 2D camera
        this.camera2D = this.area2D.addChild(new Laya.Camera2D);

        // Developers can set various attributes of the camera as needed, for example:
        // Set the camera as the main camera
        this.camera2D.isMain = true;
        // Enable smooth displacement
        this.camera2D.positionSmooth = true;
        // Set the speed of smooth movement
        this.camera2D.positionSpeed = 2;
    }
 }

2. Attributes of 2D Camera

2.1 Visualized Camera in the Scene

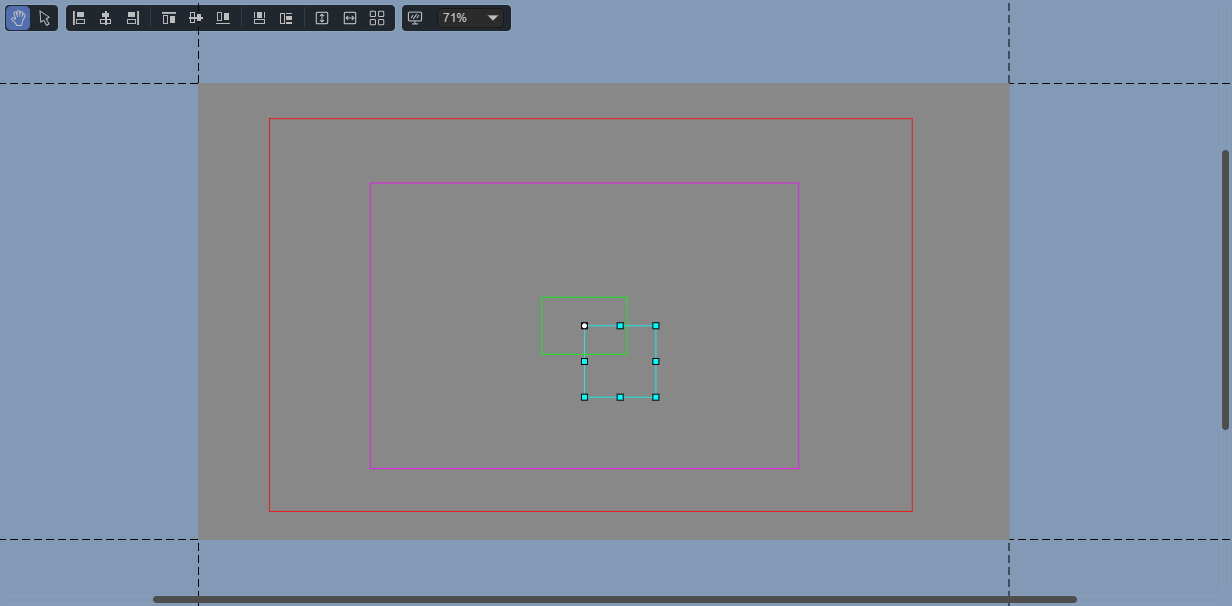

After the 2D camera is added to the scene, we can see it in the scene panel:

There are four boxes of different colors on the camera. Let's briefly introduce these four boxes here:

Red Box: Camera boundary, representing the movable range of the camera viewport. Movement beyond the boundary will be prevented. (Developers may not be able to see the red box after adding the camera to the scene. This is because the default camera boundary of the engine is very large. Developers can appropriately adjust the boundary value to observe the camera boundary).

Purple Box: Camera viewport, similar to the view frustum of the camera in the 3D scene. Only nodes within the range of the camera viewport can be observed. The size of the camera viewport is the same as the size of the 2D area where the camera is located.

Green Box: Dragging boundary of the camera, divided into horizontal dragging and vertical dragging, and it takes effect only after the corresponding attribute is enabled. When the camera node moves within the dragging boundary, the camera viewport does not move.

White Box: Camera node. The camera viewport is centered on the anchor point of the camera node, and the camera viewport follows the movement of the camera node.

2.2 Specific Attributes of 2D Camera

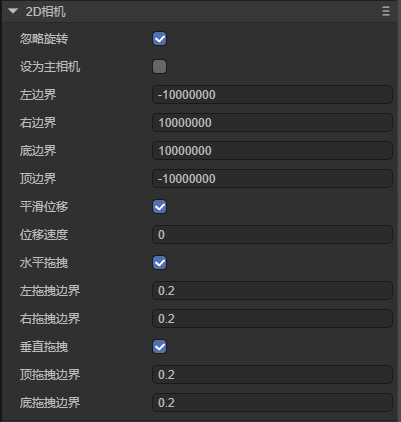

The specific attributes of the 2D camera are as follows:

3. Using 2D Camera

Before starting to learn about the 2D camera, it is recommended that developers first understand the RenderTexture in the engine. A typical usage of the render texture is to set it as the "target texture" attribute of the 3D camera, which will cause the 3D camera to render to the texture instead of the screen, and thus be used in the Sprite object like an ordinary texture. The usage of the 2D camera has many similarities to the render texture. Let's introduce the usage method of the 2D camera below.

3.1 2D Camera and 2D Area

For a 2D area node, if there is no 2D camera with the isMain attribute enabled on it, then this node is just a container with no other functions. As mentioned earlier, the 2D camera must be used as a child node of the 2D area node. Therefore, the 2D camera node and the 2D area node are two nodes that need to be used in coordination with each other.

Note: Only the 2D camera added under the 2D area and with the isMain attribute enabled can function properly. Therefore, unless otherwise specified, the 2D cameras mentioned in this section are all 2D cameras added under the 2D area and with the isMain attribute enabled.

3.2 Usage Methods of 2D Camera

After understanding the relationship between the 2D camera and the 2D area, let's explain the usage methods of the 2D camera through several demonstration examples.

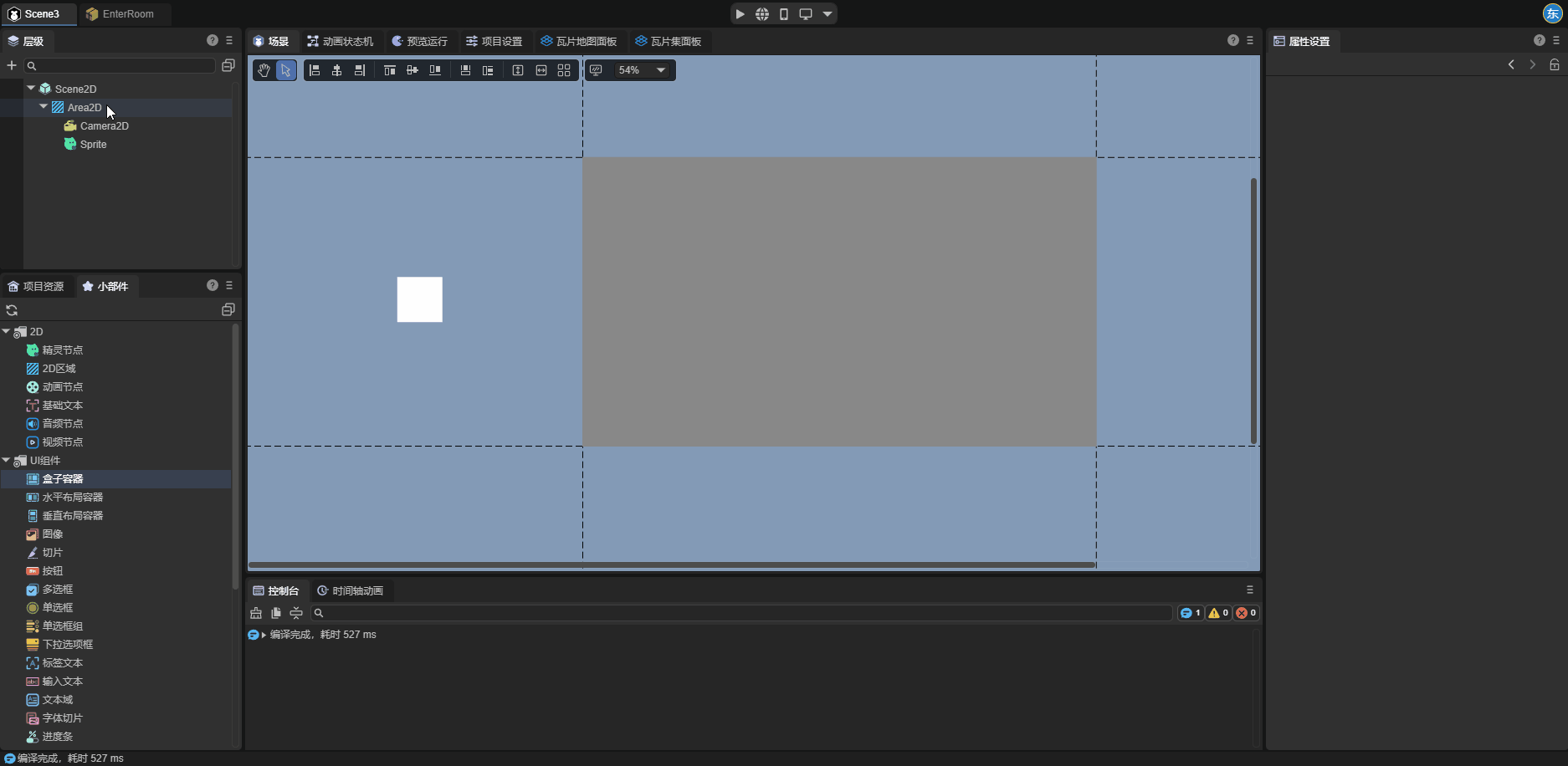

As shown in the following figure, set a 2D area within the scene range and add a white Sprite2D on it; move this node outside the scene range but keep it within the camera viewport. Run and view the effect:

(Figure 3-2-1)

Next, we change the position of the white node but keep it within the camera viewport. Run again and we can find that the position of the white node in the scene has changed:

(Figure 3-2-2)

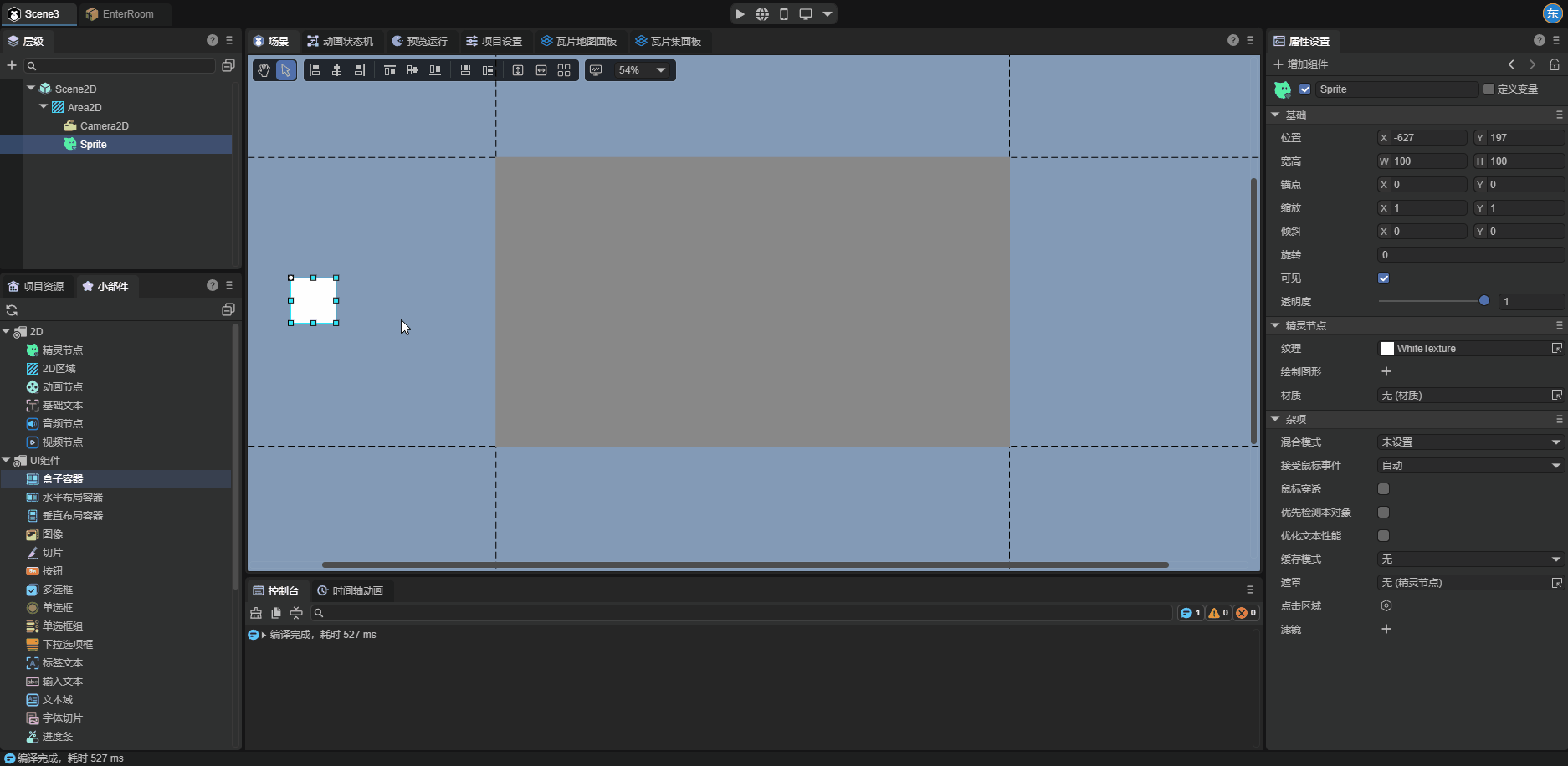

Next, we move the white node outside the camera viewport but keep it within the scene range. After running and viewing, we can find that the white node does not appear in the scene:

(Figure 3-2-2)

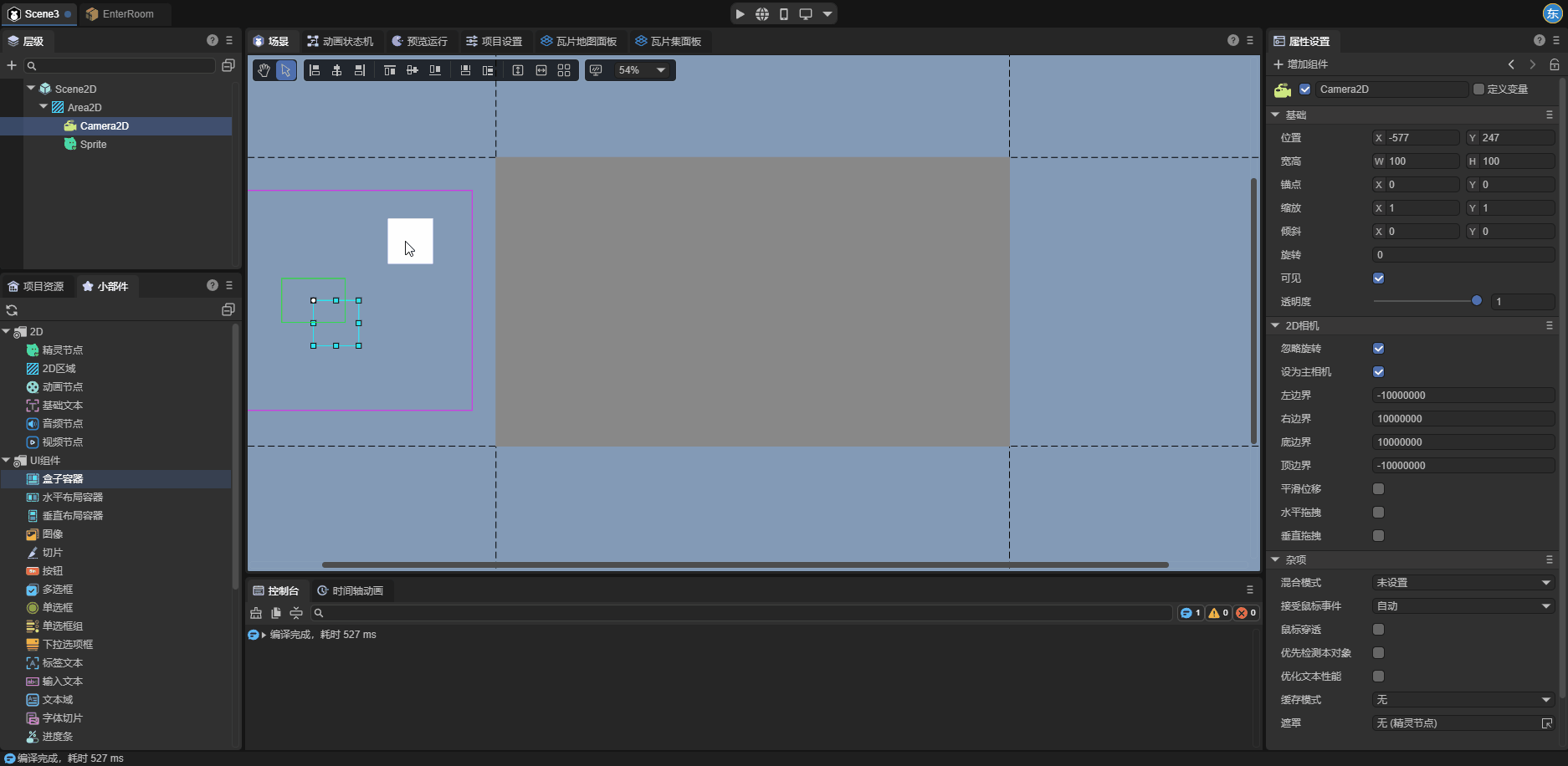

Then move the white node into the camera range, and then move the 2D area to the right to leave the scene range but keep the camera and the white node within the scene range. After running and viewing, we can find that the white node does not appear in the scene:

(Figure 3-2-4)

Through these four examples, we explain the usage method of the 2D camera. When a node meets the following conditions:

1. The node is added as a child node of the 2D area;

2. A 2D camera is added to this 2D area;

3. The node is within the camera viewport of the 2D camera;

At this time, this node will be displayed at the corresponding position of the 2D area node (the size of the camera viewport is the same as the size of the 2D area where it is located). The 2D area itself is also a node, and it will be displayed in the scene along with other nodes in the scene. As shown in Figure (3-2-4), like other nodes, when the 2D area node leaves the scene range, it will not appear in the scene.

In the example shown in Figure (3-2-3), we can find that when a node added on the 2D area leaves the camera viewport, even if this node is within the scene range, this node will not be displayed in the scene.

4. Usage Examples of 2D Camera

Through the use of the 2D camera, developers can achieve many interesting game effects. Let's show some simple Demos and explain the usage methods of the 2D camera on them.

4.1 Switching the Game Scene by Switching the Main Camera

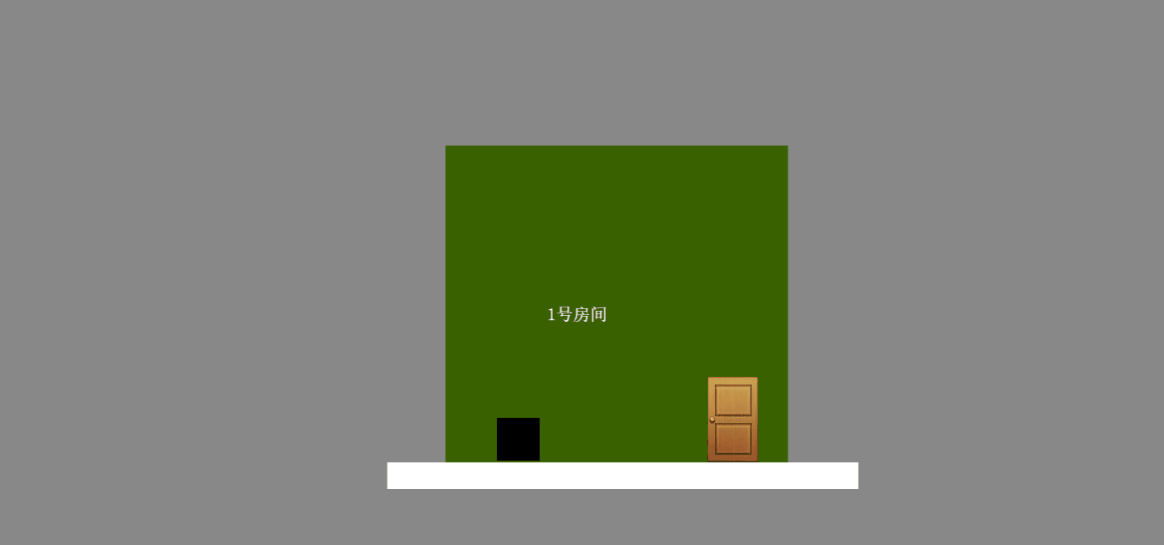

In some games that require frequent scene switching, such as when players need to frequently enter and exit rooms, developers can set the nodes of the two rooms at two distant positions in the scene and add 2D cameras to these two rooms. When players enter and exit the rooms, the isMain attribute of the corresponding room camera can be enabled through code.

4.2 Limiting the Size of the Game Map

The map size of most games is limited, and players cannot move within an infinitely large range. Therefore, the game needs to limit the player's viewpoint range. Developers can limit the player's viewpoint range by setting the four boundaries of the camera.

It can be seen that within a certain range, the camera follows the movement of the character, but when reaching the boundary, the movement of the camera is limited.

4.3 The Camera Follows the Movement of the Player

Sometimes, developers need the game screen to move along with the movement of the player. At this time, we can let the 2D camera follow the player. Combined with the various attributes of the 2D camera, many picture effects can be designed.

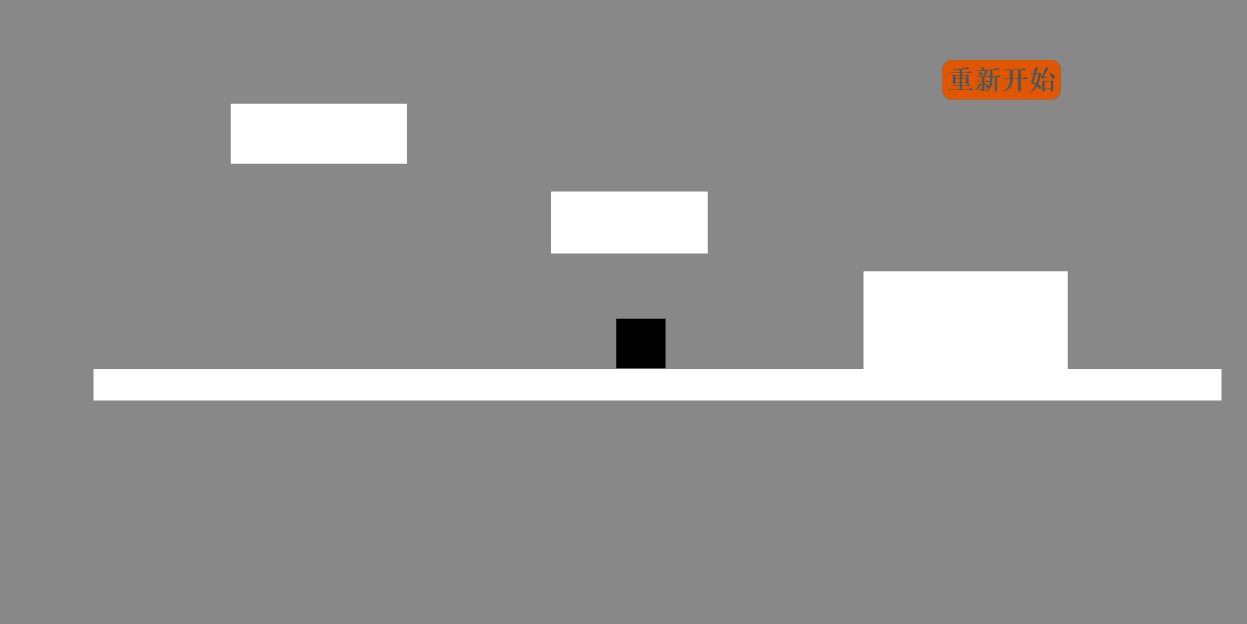

In this example, we can find that the position of the restart button in the upper right corner has never changed. If a node is not affected by the 2D camera, then this node will still appear in the scene normally. Developers can add a UI system to the game in this way.
