List (GList)

Author: Gu Zhu

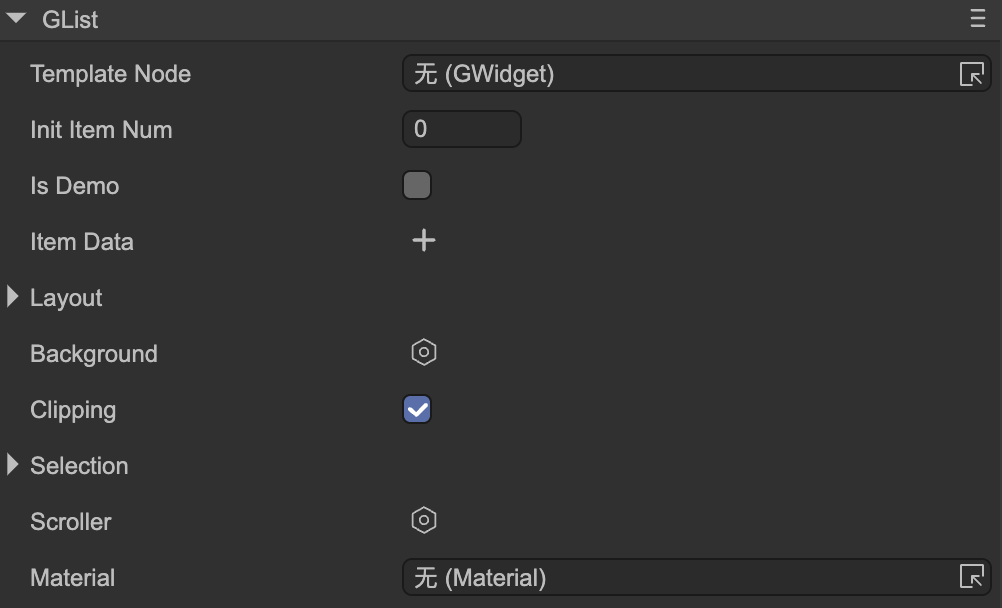

Template Node — The template for item nodes. Drag a node from the hierarchy panel. This node must be a child of the GList.
Init Item Num — Initial number of items. If greater than 0, the specified number of items will be automatically created.
Is Demo — If checked, Init Item Num only takes effect in the IDE; it has no effect at runtime, serving only as a demo in the IDE.
Item Data — Allows simple data assignment for each item.
Layout — See Layout Containers.
Clipping — Whether clipping is enabled. Content exceeding the container size will be hidden.
Selection — See Selection Support.
Scroller — See Scroller Support.

1. Managing List Content

At runtime, you can modify the list’s children using APIs like addChild or removeChild. However, in practice, list content is frequently updated. A typical scenario is clearing the list and re-adding items after receiving backend data.

Creating and destroying UI objects repeatedly consumes significant CPU and memory. To address this, GList includes an object pool.

Using the Object Pool

addItemFromPool — Retrieves an object from the pool (or creates a new one) and adds it to the list. If no argument is passed, it uses the list’s “item resource” setting; you can also specify a URL to create a specific object.
getFromPool — Retrieves an object from the pool or creates a new one.
returnToPool — Returns an object to the pool.
removeChildToPool — Removes an item and returns it to the pool.
removeChildToPoolAt — Removes an item at a specific index and returns it to the pool.
removeChildrenToPool — Removes a range of items, or all items, returning them to the pool.

Smart use: addItemFromPool = getFromPool + addChild, and removeChildToPool = removeChild + returnToPool.

Be careful: an ever-growing pool can harm performance, but not using a pool also impacts performance.

Common Mistakes

Mistake 1:

aList.addChild(obj);
aList.removeChildrenToPool();

Adding objects without the pool but returning them when clearing causes the pool to grow indefinitely, possibly leading to memory overflow. Fix: Use the pool when adding: replace addChild with addItemFromPool.

Mistake 2:

for(let i=0;i<10;i++)
    aList.addItemFromPool();

aList.removeChildren();

Here, items are added but removed without returning to the pool, causing memory leaks. Fix: Use aList.removeChildrenToPool() instead of removeChildren().

Note: Removing an item is different from destroying it. If you remove an item and will not use it again, destroy it. If it will be reused, keep a reference. Do not destroy items placed in the pool.

Using Callbacks

Instead of looping addChild or addItemFromPool, you can define an item renderer function:

function renderListItem(index:number, obj:GButton) {
    obj.title = "" + index;
}

If using a pool, the callback may be called multiple times for the same object. Be careful with event listeners and avoid temporary functions to prevent duplicates.

Set the function as the list renderer:

aList.itemRenderer = renderListItem;

Then set the total number of items:

// Creates 100 items; note that numChildren is read-only and cannot be used here
aList.numItems = 100;

If the new item count is smaller than the current count, extra items are returned to the pool. To update a specific item, call:

renderListItem(index, aList.getChildAt(index));

2. Virtual List

For very large lists (hundreds or thousands of items), creating display objects for every item is expensive. GList supports virtual lists: only items within the visible range are created, and data is dynamically applied.

Requirements for Virtual Lists

Define an itemRenderer function.
Create a Scroller; lists without a Scroller cannot be virtual.

Enable virtual mode:

aList.setVirtual();

Note: Virtual mode can only be enabled; it cannot be disabled.

Best Practices

Simplify logic in itemRenderer; avoid Promises, I/O, or heavy computations.
Do not modify ITEM instances directly in asynchronous callbacks. Instead, save the ITEM index, check if the item exists upon completion, and update it if present.
Avoid creating new objects in itemRenderer to prevent excessive GC.

In virtual lists:

ITEMs are reused; itemRenderer is called whenever an item is refreshed.
Display objects and item indices differ. Use numItems for item count and numChildren for display object count.
selectedIndex refers to the item index, not the display object index. Use itemIndexToChildIndex and childIndexToItemIndex to convert between the two:

// Convert item index to display object index
let childIndex = aList.itemIndexToChildIndex(1);

// Convert display object index to item index
let itemIndex = aList.childIndexToItemIndex(1);

Accessing Off-Screen Items

For virtual lists, off-screen items do not have display objects. To access, scroll them into view first:

aList.scrollToView(500, false); // false disables animation
let index = aList.itemIndexToChildIndex(500);
let obj = aList.getChildAt(index);

Updating Virtual Lists

Virtual lists separate data and rendering. Modify your data and refresh the list; do not manipulate item objects directly.

Methods: set numItems or call GList.refreshVirtualList().
Do not use addChild or removeChild on virtual lists.

Variable Item Sizes

Change width, height, or size in itemRenderer.
Associate internal components with item content; changes in content update item size automatically.

Other methods of changing item size externally are not allowed, or layout will break. Use refreshVirtualList() if needed.

Mixed Item Types

Define an item provider function:

function getListItemResource(index:number) {
    let msg = _messages[index];
    return msg.fromMe ? "url1.lh" : "url2.lh";
}
aList.itemProvider = getListItemResource;

Virtual List Layout

Horizontal, vertical, and paged virtual lists have fixed items per row/column.
For non-uniform items, insert placeholders with defined width to maintain layout.

3. Loop List

Loop lists are circular and must be virtual. Enable with:

aList.setVirtualAndLoop();

Supports only single-row or single-column layouts; not flow or paged layouts.
Because indices may appear at different positions in a loop, avoid relying on item indices when scrolling. Use Scroller APIs (scrollLeft, scrollRight, scrollUp, scrollDown) to move by one step accurately.
